Core i3 to Core i7- new motherboard needed?

Answered Go to the full post

  • Please log in to reply
20 replies to this topic

#1 noooorb

noooorb

    Neowinian

  • Joined: 27-December 06

Posted 12 December 2013 - 02:57

O o.... Do I need a new motherboard? I was under the impression that all Intel Core series processors were interchangeable.

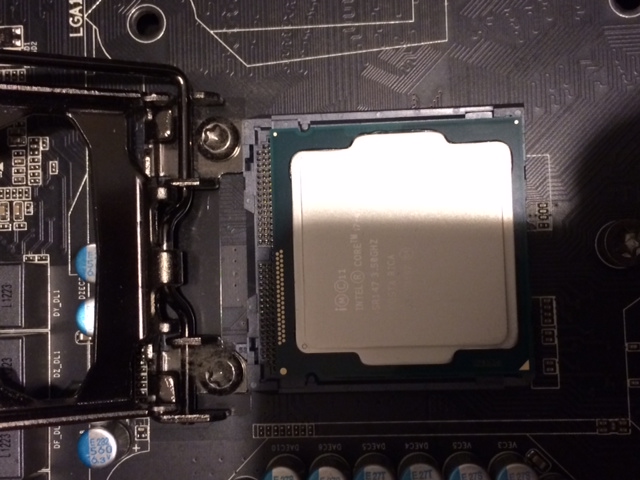

See attached pic where my new intel core i7 4770k appears to be  a bit too small for the cpu housing on my Gigabyte GA-Z77X-UD3H.



Thanks in advance fellas.

Attached Images

  • photo.JPG


Best Answer Raa , 12 December 2013 - 03:01

The Intel 4xxx series chips are for Socket 1150. You have a Socket 1155. They are not interchangeable.



You will need an Intel 3xxx series chip.

Go to the full post



#2 Raa

Raa

    Resident something-or-rather

  • Tech Issues Solved: 2
  • Joined: 03-April 02
  • Location: NSW, Australia

Posted 12 December 2013 - 03:01   Best Answer

The Intel 4xxx series chips are for Socket 1150. You have a Socket 1155. They are not interchangeable.



You will need an Intel 3xxx series chip.



#3 +Boo Berry

Boo Berry

    Neowinian Ghost

  • Tech Issues Solved: 5
  • Joined: 26-March 05
  • Location: United States

Posted 12 December 2013 - 03:02

Your board is a Z77 board, you'll need a Z87 board for the 4770K.



#4 OP noooorb

noooorb

    Neowinian

  • Joined: 27-December 06

Posted 12 December 2013 - 03:07

Darn. Is the Socket 1150 the future of Intel core chips (want to be as future proof as possible here).



#5 +Boo Berry

Boo Berry

    Neowinian Ghost

  • Tech Issues Solved: 5
  • Joined: 26-March 05
  • Location: United States

Posted 12 December 2013 - 03:12

Well...



1) The performance increases between generations of Intel CPUs for the last few years hasn't been *that* great to warrant an upgrade unless you absolutely want the latest chip, e.g. if you had a Sandy Bridge CPU, you're still in pretty good shape and there wouldn't be much reason to upgrade to say Ivy Bridge or Haswell.



2) There isn't exactly a "future-proof" socket - they tend to change from generation to generation. There is socket 2011 which is used for the higher end CPUs (for the foreseeable future at least as Haswell-E will still use it). But since you already have a 4770K, I'd recommend getting a socket 1150 (Z87) board instead and ride it for a few years. It's a hell of a CPU!  :p



#6 +theblazingangel

theblazingangel

    Software Engineer

  • Tech Issues Solved: 3
  • Joined: 25-March 04
  • Location: England, UK

Posted 12 December 2013 - 03:12

Yes, you need a new motherboard. Your impression is inaccurate, while their are usually multiple processors that will work for any given socket, there are many different sockets used throughout the entire Intel Core series. Your current motherboard has an LGA1155 socket, which is suitable for a lot of Intel "Sandy Bridge" and "Ivy Bridge" based Intel Core series processors, while your new Intel Core i7 4770K CPU is "Haswell" based and requires a motherboard with an LGA1150 CPU socket.

#7 Raa

Raa

    Resident something-or-rather

  • Tech Issues Solved: 2
  • Joined: 03-April 02
  • Location: NSW, Australia

Posted 12 December 2013 - 03:15

Darn. Is the Socket 1150 the future of Intel core chips (want to be as future proof as possible here).

Yes, socket 1150 replaces socket 1155 now. How long for? Hard to say, but at least the next 1-2 years at least.



#8 +Boo Berry

Boo Berry

    Neowinian Ghost

  • Tech Issues Solved: 5
  • Joined: 26-March 05
  • Location: United States

Posted 12 December 2013 - 03:17

Yes, socket 1150 replaces socket 1155 now. How long for? Hard to say, but at least the next 1-2 years at least.

I predict LGA1145 for Broadwell. :p Assuming of course Broadwell comes to desktops for which I have my doubts it will.



#9 +theblazingangel

theblazingangel

    Software Engineer

  • Tech Issues Solved: 3
  • Joined: 25-March 04
  • Location: England, UK

Posted 12 December 2013 - 03:18

Damn, beaten to it by others :p

Darn. Is the Socket 1150 the future of Intel core chips (want to be as future proof as possible here).


As Boo Berry said above, they change fairly regularly. To be as "future proof" as possible in this regard, all one can possibly do is jump on a new socket as soon as it becomes available, thus "riding it out" for as long as possible... Whether you should return your new CPU and simply get a more powerful CPU for your existing board, or whether you should get a new board is your decision to make, we can't really even give a recommendation without knowing more background on your financial situation and processing requirements.

#10 +theblazingangel

theblazingangel

    Software Engineer

  • Tech Issues Solved: 3
  • Joined: 25-March 04
  • Location: England, UK

Posted 12 December 2013 - 03:22

I predict LGA1145 for Broadwell. :p Assuming of course Broadwell comes to desktops which I have my doubts it will.


Broadwell is simply a die shrink of Haswell, so won't they be sticking with the same sockets until Skylake?

https://en.wikipedia...Intel_Tick-Tock
https://en.wikipedia...wiki/CPU_socket

#11 +Boo Berry

Boo Berry

    Neowinian Ghost

  • Tech Issues Solved: 5
  • Joined: 26-March 05
  • Location: United States

Posted 12 December 2013 - 03:25

Yep, unless they choose to gouge the consumers into purchasing new motherboards AGAIN (which they won't obviously... hopefully), heh. Again, assuming Broadwell come to desktops. Can't wait for Skylake though!



#12 MindTrickz

MindTrickz

    That's no way to treat a lady!

  • Tech Issues Solved: 1
  • Joined: 18-September 03
  • Location: Europe:

Posted 12 December 2013 - 03:44

There are 4 generation Intel Core™ processors. Nehalem, Sandy Bridge, Ivy Bridge, and the latest Haswell. All 4 generation have their own variety of i3/i5 and i7 processors. The generation are not all interchangeable.



You have an Ivy Bridge motherboard. Ivy Bridge uses LGA 1155 and LGA 2011. The one you have is a Z77 that uses LGA 1155. The 4770K is an Haswell i7 processors, which needs a Z87 motherboard. Z87 is LGA 1150.



#13 PGHammer

PGHammer

    Neowinian Senior

  • Tech Issues Solved: 1
  • Joined: 31-August 03
  • Location: Accokeek, MD
  • OS: Windows 8 Pro with Media Center x64

Posted 12 December 2013 - 04:07

There are 4 generation Intel Core™ processors. Nehalem, Sandy Bridge, Ivy Bridge, and the latest Haswell. All 4 generation have their own variety of i3/i5 and i7 processors. The generation are not all interchangeable.



You have an Ivy Bridge motherboard. Ivy Bridge uses LGA 1155 and LGA 2011. The one you have is a Z77 that uses LGA 1155. The 4770K is an Haswell i7 processors, which needs a Z87 motherboard. Z87 is LGA 1150.

Sandy Bridge and Ivy Bridge (second-generation and third-generation) ARE interchangeable, and can use the same motherboards, despite their releases using different chipsets (Z68 and Z77 respectively).  Therefore, you CAN run Sandy Bridge in a Z77 motherboard, or Ivy Bridge in Z68 - however, I recommend Z77 chipsets for either generation (due to chipset improvements in Z77 compared to Z68) - both second-generation and third-generation CPUs use LGA1155.



LGA2011 is a variant of Sandy Bridge and Ivy Bridge (Sandy Bridge-E and Ivy Bridge-E).  Only one high-end chipset (X79) was released for LGA2011.



Haswell (LGA1150) is the successor to Ivy Bridge, and has the flagship Z87 chipset - it is not electrically compatible with Ivy Bridge OR Sandy Bridge, or with Z68/Z77.



#14 +snaphat (Myles Landwehr)

snaphat (Myles Landwehr)

    Electrical & Computer Engineer

  • Tech Issues Solved: 29
  • Joined: 23-August 05
  • OS: Win/Lin/Bsd/Osx
  • Phone: dumb phone

Posted 12 December 2013 - 04:13

Yep, unless they choose to gouge the consumers into purchasing new motherboards AGAIN (which they won't obviously... hopefully), heh. Again, assuming Broadwell come to desktops. Can't wait for Skylake though!



They already announced that Broadwell would be LGA1150. Skylake is going to use something called LGA1151. I imagine the LGA2011 socket will change also.



#15 +snaphat (Myles Landwehr)

snaphat (Myles Landwehr)

    Electrical & Computer Engineer

  • Tech Issues Solved: 29
  • Joined: 23-August 05
  • OS: Win/Lin/Bsd/Osx
  • Phone: dumb phone

Posted 12 December 2013 - 04:14

Well...



1) The performance increases between generations of Intel CPUs for the last few years hasn't been *that* great to warrant an upgrade unless you absolutely want the latest chip, e.g. if you had a Sandy Bridge CPU, you're still in pretty good shape and there wouldn't be much reason to upgrade to say Ivy Bridge or Haswell.



2) There isn't exactly a "future-proof" socket - they tend to change from generation to generation. There is socket 2011 which is used for the higher end CPUs (for the foreseeable future at least as Haswell-E will still use it). But since you already have a 4770K, I'd recommend getting a socket 1150 (Z87) board instead and ride it for a few years. It's a hell of a CPU!  :p



High-end Haswell's (Haswell-E) don't use LGA2011, they use something called LGA2011-3. It has the same number of pins but a different pin-out than the original. They are incompatible because of the pin-out changes.



Broadwell-E will probably use LGA2011-3, but I doubt Skylake will given that Intel already announced socket changes from LGA1550 to LGA1551 for the mainstream processors for Skylake (they've shifted sockets across the board for all of their processors when they've changed them for each core i7 generation --> likely due to chipset and feature changes rendering incompatibilities with older chipsets).
