26 posts in this topic

i have a weird network issue wherein my two network adapters get both an address via DHCP and also a Link Local IP address. (see screenshot). the two adapters are connected to two different networks with different dhcp servers. i have a feeling that this is a remnant from creating a bridge connections between the two adapters. this is an issue as in certain software that checks the IP address it detects and uses the link local ip address.






i have tried resetting network settings, resetting winsock. uninstalling the network adapter and adding it again but the problem seems to persists. i wanted to know if anyone has any clue on removing this link local address. it seems to only occur on the two network cards that i had created a bridge on earlier and deleted it.



any help is greatly appreciated



Share this post


Link to post
Share on other sites

It's set on the default "automatic private IP address"

Share this post


Link to post
Share on other sites

Another possible cause is that there is another computer with that ip address on the network.  If that is the case, you will need to change the static ip of that computer or reserve that ip in your dhcp for that other computer.

Share this post


Link to post
Share on other sites

I recall someone else having this issue awhile back and don't recall the exact cause - but this seems like a repeated problem. Hopefully the details will come to me here in a bit.

So what is this nic, its not dual port? is this the built in nic?

Arrggh its going to drive me nuts until I recall this previous thread now ;)

Share this post


Link to post
Share on other sites

Moved to Internet, Network & Security

Share this post


Link to post
Share on other sites

@sc302 the DHCP ip address 192.168.104.81 is reserved for the computer on the DHCP server so there is no conflict as far as i can tell.



@budman the computer is laptop (Dell Precision M4700). one network is the built intel 82xx and the other one is via a USB3 to gigabit ethernet adapter (TRENDNet TU3-ETG). the issue is on both these cards. these were the two cards i tried to set the bridge on which i later deleted.



could it be an issue related to how long windows waits before detecting wether DHCP server is present on the network. whats funny though is that the DHCP ip address shows up first and after a few mins the private IP also shows up.

Share this post


Link to post
Share on other sites

So I found the thread I was thinking about

http://www.neowin.net/forum/topic/1163160-each-nic-has-2-ip-addresses-cannot-work-out-why/

His was a VM.. He never came back to the thread - so not sure what happened with this.

You could try reset of your stack.. I have never ran into this before that last thread I linked too, have never seen it - so not exactly sure what could be causing your problem. I doubt it has anything to do with the attempted bridge. Did you actually remove the bridge?

http://support.microsoft.com/kb/299357

if you go to ipv4 properties, advanced do you see anything under IPs?

example


Share this post


Link to post
Share on other sites

I've had that happen to a couple client machines. Reset the network stack, removed all network adapters and reinstalled them with new drivers. No static IP, the DHCP server was giving out the correct address. Still the problem would persist. Unfortunately the fastest thing for me to do was reimage the machine. Hopefully you won't have to resort to that.

Share this post


Link to post
Share on other sites

@budman here is the same window on my network adapter. only dhcp is enabled




Share this post


Link to post
Share on other sites

If your ok with it - wouldn't mind setting up a Team viewer session to look into this a bit more.

Did you read the other thread about deleting the reg key for the guid that has that other IP On it?

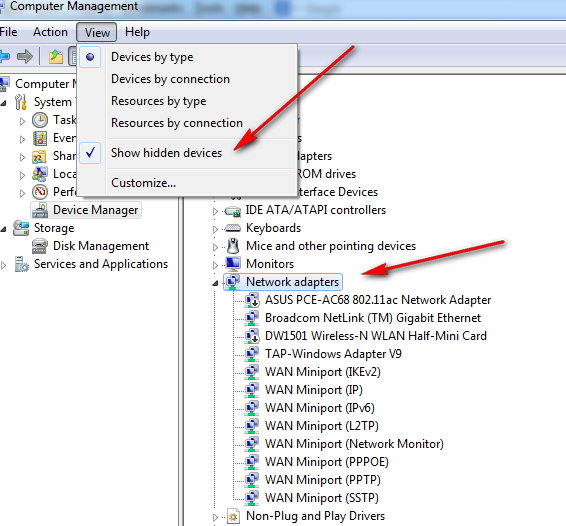

Can you post the output of your ipconfig /all and also this section in device manager - making sure you set show hidden.


Share this post


Link to post
Share on other sites

another area to look would be:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\Interfaces\





here are a few other things to try, there are a few in this thread:

http://social.technet.microsoft.com/Forums/windowsserver/en-US/8acb7cd1-7028-4ffe-86c9-eb43041cf8b3/how-do-i-get-rid-of-second-169254xx-ipv4-address-on-windows-server-2008-sp2-x86?forum=winservergen





apparently there are a lot of causes and not one silver bullet to fix it.  you are going to have to try different things until you find the fix for you.

I would take budman up on doing a teamviewer session...I wouldn't mind doing it either.

Share this post


Link to post
Share on other sites

Attached is the output from ipconfig/all



i added the IPAutoConfigurationEnabled to 0 on all the interfaces but it still shows up as autoconfiguration enabled in ipconfig output. i have attached the registry of the interfaces module also

post-42710-0-37437800-1407226595.png post-42710-0-55559100-1407226626.png





ipconfig.txt interfaces.txt

Share this post


Link to post
Share on other sites

which of those guid shows 169.x address if any - don't have the time to convert the hex ;) Also look in registry if bridge is still there?

Do you have bridge left in the registry - should be here

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\Bridge and BridgeMP


Did you reset the stack with netsh?

Share this post


Link to post
Share on other sites

none of the guids had the 169.x address



i have tried

netsh int ip reset

netsh winsock reset



both didnt seem to fix the issue.




Share this post


Link to post
Share on other sites

you could try removing those reg entries - they are not there unless a bridge has been created. I would have to test if they should be removed when you remove the bridge.

Share this post


Link to post
Share on other sites

tried removing the empty bridge entries. did not seem to make a difference.

Share this post


Link to post
Share on other sites

Do a search in the registry for the apipa address your getting.. Where is it listed?

Share this post


Link to post
Share on other sites

you can try running this command

netsh interface ip delete address 169.254.209.188
but it may come back after reboot.

Share this post


Link to post
Share on other sites

^ that would remove it sure, but I agree with sc302 most likely just come back. Can you post the bindings you have on this interface.

example


Share this post


Link to post
Share on other sites

searching for the ip address in the registry did not yield any hits.



as suggested by sc302 deleting the address works but it comes back at next bootup. this might be decent temporary solution until i can get around to doing a clean install.



Share this post


Link to post
Share on other sites

why do you have binding for ipv6 - but don't see any ipv6 addressing or adapters in you ipconfig /all? Also what is that SVGigE filter driver?

Share this post


Link to post
Share on other sites

i use the MS disable IPv6 utility to disable IPv6 http://support.microsoft.com/kb/929852



SVGigE filter driver is the driver for a SVS Vistek GigE  camera. this was installed prior to the problem showing up. just to try i have removed it and problem is still there.

Share this post


Link to post
Share on other sites

try disabling that svgige for the time being and see what that does after a reboot or ipconfig/release & ipconfig/renew

Share this post


Link to post
Share on other sites

I disable ipv6 in the registry with simple command

reg add hklm\system\currentcontrolset\services\tcpip6\parameters /v DisabledComponents /t REG_DWORD /d 255

But I would then unbind the interface for sure as well.. Try unchecking that reboot to see if your apipa address is still there.

Share this post
