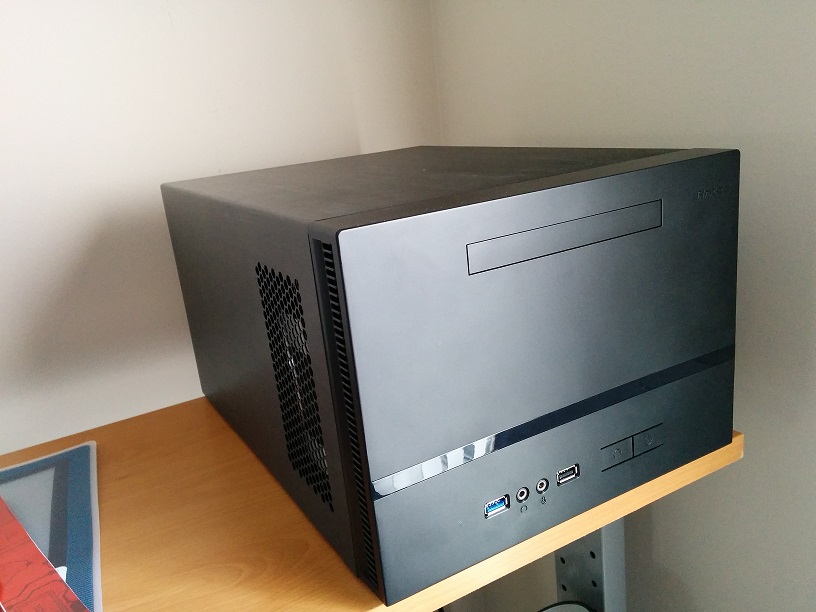

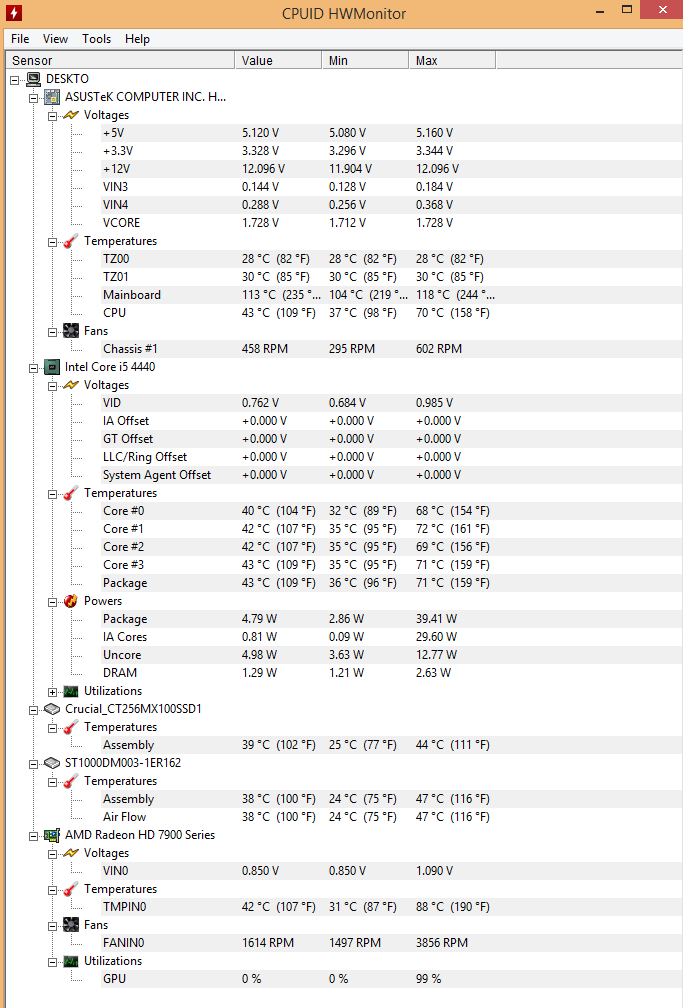

ultimate99 Posted January 5, 2015 Share Posted January 5, 2015 Here is my new build, last time I did one of these was around 2008-2009. Nice, small and compact. Having said that, take a look at the temps, are these normal, specially for the mobo? CPU: Intel Core i5-4440 3.1GHz Quad-Core Processor Motherboard: Asus H87 PlusI Mini ITX LGA1150 Motherboard Memory: Kingston Fury Black Series 8GB (1 x 8GB) DDR3-1600 Memory Graphics: XFX Radeon 7950 DD 3GB Storage: Seagate Barracuda 1TB 3.5" 7200RPM Internal Hard Drive Case: Antec ISK600 Mini ITX Tower Case Power Supply: Corsair CX 600W 80+ Bronze Certified Semi-Modular ATX Power Supply Link to comment Share on other sites More sharing options...
daorbed9 Posted January 5, 2015 Share Posted January 5, 2015 Yeah 4th gen run very hot. The i7's will hit 90 with stock heatsink. Link to comment Share on other sites More sharing options...
tsupersonic Posted January 5, 2015 Share Posted January 5, 2015 CPU and GPU temps look ok. Motherboard - could be a faulty temp. sensor or a bad reading. Aergan 1 Share Link to comment Share on other sites More sharing options...
+Warwagon MVC Posted January 5, 2015 MVC Share Posted January 5, 2015 If you could resize that photo that would be great. Link to comment Share on other sites More sharing options...
+kpo6969 Subscriber¹ Posted January 8, 2015 Subscriber¹ Share Posted January 8, 2015 Try using HWiNFO 64 (latest beta) for temps. Link to comment Share on other sites More sharing options...
Jason S. Global Moderator Posted January 8, 2015 Global Moderator Share Posted January 8, 2015 Temps are ok. i assume that's the stock cooler? No idea what's up w/ that motherboard temp. out of curiosity, why didnt you go w/ an SSD? Also, why only 1 DIMM and not 2? Link to comment Share on other sites More sharing options...
ultimate99 Posted January 8, 2015 Author Share Posted January 8, 2015 Stock cooler, yes. I already have an ssd from before. In regards to the ram, I have only 2 slots, so I'm saving when I upgrade to 16gb. Link to comment Share on other sites More sharing options...
Aergan Posted January 8, 2015 Share Posted January 8, 2015 I think it's a nicer design than the Coolermaster equivalent in the flesh - very Shuttle-esque. Still prefer my 250D though. If you're concerned about the temps you might want to consider either a closed loop system (would have to be Antec for it to fit correctly in your case) and ensuring your GFX card heat output is being efficiently dumped outside the case where possible. I regret not having the reference design Nvidia GTX cooler for this reason. For your case I would imagine this will be a high static pressure rear exhaust fan and a CPU cooler that is exhausting in the same direction to keep the air moving in the same constant direction. Link to comment Share on other sites More sharing options...
