XCOR Lynx spaceplane updates


Recommended Posts

XCOR background info:

XCOR Aerospace has been in the aerospace business since 1999. They're headquartered at the Mojave Spaceport just down the tarmac from Virgin Galactic and their specialty is re-usable liquid fueled rocket engines.

A big project is a joint-venture with Boeing to develop a very low cost 30,000 lb-f/30 kilo-Newton 2nd stage liquid hydrogen engine for boosters that could easily be scaled way up. They have also developed a reciprocating piston liquid hydrogen pump that could further cut booster costs by replacing the very expensive turbo-pumps currently in use. Lots of interested parties for that one.

Then there is the project that is starting to get a lot of attention, and customers for when it flies - the Lynx suborbital spaceplane. Lynx is on one hand like SpaceShipTwo, and on the other hand very different.

SS2 - Lynx comparisons:

SS2 is 60ft/18.29m long with a 27ft/8.23m wingspan.

Lynx is 30ft/9m long with a 24ft/7.5m wingspan

SS2 is launched from the White Knight Two mothership at 50,000 feet.

Lynx takes off directly from the ground, requiring a very short runway.

SS2 uses a hybrid solid/liquid engine; rubber fuel, nitrous oxide oxidizer.

Lynx uses 4 re-usable liquid rocket engines; kerosene fuel, liquid oxygen oxidizer.

SS2 carries 6 passengers and a crew of 2.

Lynx carries 0-1 passengers and a crew of 1.

SS2 passengers will pay $200,000 at first

Lynx passengers will pay about $100,000 at first

SS2 passengers will be able to de-seat and float around and look out through portholes.

Lynx passengers will have to remain seated, but the cockpit has a panoramic view.

SS2 can only fly from spaceports with a runway capable of handling White Knight Two and refurbing its hybrid engine

Lynx can fly from short runways, and the fuel/liquid oxygen handling can be done using a portable cart.

SS2 can carry internal experiments and mount external micro-satellite size payloads.

Lynx can do the same, but it can also launch small orbital satellites from a Dorsal Pod on its back, or even carry small telescopes for missions like NASA's Sophia flying telescope - but much higher.

These missions are not theoretical - they are sold missions and Lynx is very, very real!

This is for Neoadorable: they are working on a larger, orbital, Lynx-like vehicle that will also take off from a runway, but using a fly-back booster.

Pics below with appropriate labeling -

Flight profile animation


Lynx spaceplane


Lynx cutaway


Lynx cockpit cutaway - payloads


Lynx with Payload Pod


Lynx launching satellite (or ??) from the Dorsal Pod


Lynx with telescope in Dorsal Pod


Link to comment
Share on other sites

thanks a lot for this Doc, you have made my day with the Lynx Mk II. this is indeed a step in the right direction, so we can prove to you that the future is indeed the Valkyrie rather than your beloved rockets :laugh: thanks also for the highlight and personal shout-out, very much appreciated. please do keep us informed on these guys, i even love the winking lynx logo, very awesome, and looks like they have the right idea. i just hope they have the funding and resources to make it real in the next few years.

Link to comment
Share on other sites

Few years? The first bird is under construction, the engines are done and test flights are scheduled for late 2011 through early 2012. Commercial ops should start in late 2012.

Other news -

Lynx to fly Planetary Science Institute (PSI) Atsa telescope....

Lynx to fly 8 Southwest Research Institute (SwRI) missions....


XCOR selects world-wide payload integrators....



The first group of XCOR Lynx payload integration specialist firms include the following (in alphabetical order): the African Space Institute of Durban, South Africa; Cosmica Spacelines of Toulouse, France; NanoRacks of Lexington, Kentucky and Washington, D.C.; the Southwest Research Institute (SwRI) in Boulder, Colorado; Space Chariots in Oxon, England; Space Experience Cura?ao of the Netherlands and the Caribbean island of Cura?ao; Spaceflight Services in Tukwila, Washington, Valencia, California, and Huntsville, Alabama; and Yecheon Astro Space Center, Yecheon, South Korea.

Dr. Alan Stern, Associate Vice President at SwRI, the former NASA Associate Administrator for Science and the Chairman of the Commercial Spaceflight Federation's Suborbital Researchers Group, said, "We are extremely excited about the capabilities that Lynx will bring to our many research clients at SwRI, so much so that we've already procured six flights for our own pathfinder and discovery missions to better understand how we can best serve our clients. As a trained researcher and test engineer, I can't wait to fly with my experiments on Lynx and ring out the processes and procedures that will help our clients succeed, and help our Institute stay at the forefront of the 21st century."


Link to comment
Share on other sites

Aero News videos of XCOR's Jeff Greason reviewing Lynx development. Sorry about their ads, but you can fast-forward past them.

Part I covers Lynx development

Part 2 talks a bit about their plans for an orbital system

Link to comment
Share on other sites

A little older video; one of the engineers discusses the cockpit mockup

Another engineer discusses the 3,000 lb-f engine; Lynx has 4. TINY!!

Engine test

Link to comment
Share on other sites

thanks for these, but my joy is mitigated by the small scale of this ship...650Kg? my Valkyrie is supposed to heft 65 tons... :unsure:

Link to comment
Share on other sites

Evolutionary steps - prove the concept (ex: SpaceX's Falcon I) then scale it up (Falcon Heavy). In conventional aviation this would be the evolution from a DC-3 to the A380.

Link to comment
Share on other sites

as usual you are right...XCOR builds an SSTO that can lift 1200 pounds now, proves it works for a few years, then we go up to several tons...then a couple decades later we got a proper SSTO. thanks as always for the reality check!

Link to comment
Share on other sites

skydiving seems so yesterday compared to sub orbital flights lol

Few years? The first bird is under construction, the engines are done and test flights are scheduled for late 2011 through early 2012. Commercial ops should start in late 2012.

* adds sub orbital flights to - to do before i die list

Link to comment
Share on other sites

  • 5 months later...

XCOR is finally done designing and getting a bird ready to fly later this year.

Flight Global....

reveals Lynx test schedule


Spacecraft designer Xcor has revealed details of a plan to achieve first flight of the Lynx Mk1 later this year and to expand the suborbital market far beyond space tourism.

First flight for the Lynx already has been delayed by two years after XCor discovered a deep stall problem with the original Lynx design. That issue has now been overcome through design changes to the wing, allowing Xcor to begin final assembly within a few weeks.

The first major piece of structure - the fuselage of the Mk1 version -- will be delivered to Xcor the week of 16 January, said Andrew Nelson, chief operating officer and vice president of business development.

Next month, Xcor will tender work packages for building the cockpit pressure vessel and strakes in February, with delivery of the two subassemblies scheduled in April in May, said Khaki Rodway McKee, the Xcor programme manager.

Roll-out of the Mk1 is scheduled in July or August from Xcor's hangar in Mojave, California, she said.

Taxi tests are scheduled to begin in October or November, which will be quickly followed by a short hop and finally a brief first flight by the end of the year.

The Lynx Mk1 design will be limited to flight tests. For commercial operations, Xcor will roll-out a Mk2 version about nine months later with two major changes. The Mk2 aeroshell will be made with different material that is easier to maintain in the field. Secondly, the metallic liquid oxygen fuel tanks on the Mk1 will be replaced by a non-flammable composite material, McKee said.

Finally, a Mk3 version of the Lynx is still being designed. It will introduce a 3.4m-long, circular payload pay mounted on top of the fuselage. The added feature will allow the Lynx to launch satellites weighing up to 650kg into low-earth orbit.

Xcor has discovered the Mk3 will require more extensive design changes than first thought. The landing gear must be strengthened and aerodynamic effects may drive the designers to make tweaks to the outer mould line, Nelson said.

As first flight approaches, Xcor also has released a detailed market projection for its new product. Company officials are seeking to break the popular notion that suborbital spaceflight is aimed solely at the space tourism market.

Tourism will account for less than 10% of the roughly $6 billion "addressable market" Xcor anticipates for the Lynx by 2015, when the company envisions a growing fleet launching into space several times a day.

Another $1.1 billion in yearly sales is projected for launching payloads, as well as $1.4 billion in revenue for launching small satellites. Xcor also projects a $2.8 billion market for vehicle and equipment sales to third parties, including the possibility of selling the rocket engine to the United Launch Alliance as a replacement for the Pratt & Whitney RL10.

(RL-10 is an old reliable upper stage engine that needs updating. XCOR has experience with innovative rocket engines designed for high reliability - and they have lots of ?experience with methane fueled engines, which could be very, very useful for fuel depots and Mars)

Link to comment
Share on other sites

heh heh how come you didn't conveniently highlight the best parts, as always? so when is she flying up? give me the bottom line here Doc!

Link to comment
Share on other sites

  • 1 month later...


XCOR Aerospace Closes $5 Million Round of Investment Capital

XCOR Aerospace reports that it recently closed a $5 million round of equity funding. The round, combined with cash on hand plus anticipated and existing contracts should fund the company through production of its Lynx Mark I Suborbital vehicle.

The financing included participation of new and previous investors. Among them are Esther Dyson, Pete Ricketts (co-owner of the Chicago Cubs) and several top Silicon Valley entrepreneurs and former venture capitalists.

"We have chosen to announce this wonderful news at the Next Generation Suborbital Researchers Conference here in Silicon Valley because we believe the future of commercial space access will be driven by enterprise customers like the attendees here [today]," said Andrew Nelson, XCOR's Chief Operating Officer.

He added, "This investment represents a vote of trust and confidence in the markets represented by NSRC participants."

Jeff Greason, Founder and CEO of XCOR noted, "I believe we were able to raise funds in these trying economic times because XCOR has demonstrated compelling value to investors and customers. Our $60-plus Million backlog of orders for Lynx suborbital vehicles, flights on Lynx, and our unique reusable non-toxic rocket engines gives the investor community reason to take notice."

As part of this financing, XCOR is also happy to announce a reformulated Board of Directors. The directors include newcomer Esther Dyson, former venture capitalist Stephen Fleming, Chairman of the Space Studies Institute Dr. Lee Valentine, and company founders Jeff Greason and Dan DeLong.

Ms Dyson is well known for her perceptive early investments in the Internet, software and social media industries, her service on private and public corporate boards and foundations, and for leading NASA's Technology and Innovation Advisory Council.

Mr Fleming is a former general partner at the venture capital firm of ATV Partners and is now Vice President at Georgia Tech where he leads the Enterprise Innovation Institute. Dr Valentine is well known in the commercial space community for his leadership of the Space Studies Institute and his work with many early stage startup companies.

Work proceeds on the Lynx suborbital vehicle at XCOR. With the recent receipt of the Lynx Mark I fuselage, the continued testing of the liquid oxygen and kerosene propulsion system, the fielding of the non-toxic high performance bi-propellant reaction control system, and the recent release of request for quotes for the cockpit pressure vessel and wing strakes, XCOR is getting ever closer to first flight.

"While the recent and unprecedented disruptions in the capital markets have impacted every fledgling aerospace company, XCOR has weathered the storm and in 2011 we had our best year ever from a revenue and profitability perspective. And while the difficulties of the last few years have delayed the Lynx, we're excited about the challenges ahead.

"There is a lot of work and sizable risk in front of us, but XCOR continues its uncompromising commitment to safety and excellence. We remain focused on delivering our customers the coolest rocket plane on the planet," said Nelson.

Link to comment
Share on other sites

this is the way suborbital should get done, not by space agencies. But that doesn't sound like a lot of money.

Link to comment
Share on other sites

XCOR's system is being designed to be economical to build and fly, and it's all they figured they needed. Jeff Greason is no amateur - he speaks & everyone listens..

Link to comment
Share on other sites

I know he's very much respected. I hope we can see more results from them soon, they are he right people for this job, not NASA.

Link to comment
Share on other sites

  • 2 months later...

From the Spacecraft Technology Expo

- Mk. I fuselage delivered

- Planning first flight at end of 2012 or early 2013

- Mk. II has composite LOX tanks, which enables apogee increase to >100 km

- Mk. III can support external payloads, such as telescopes or nanosatellite launchers

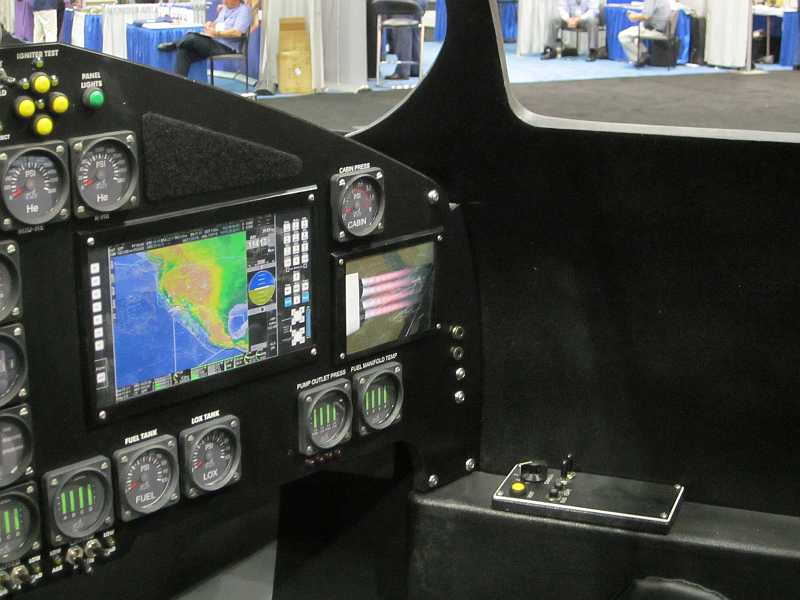

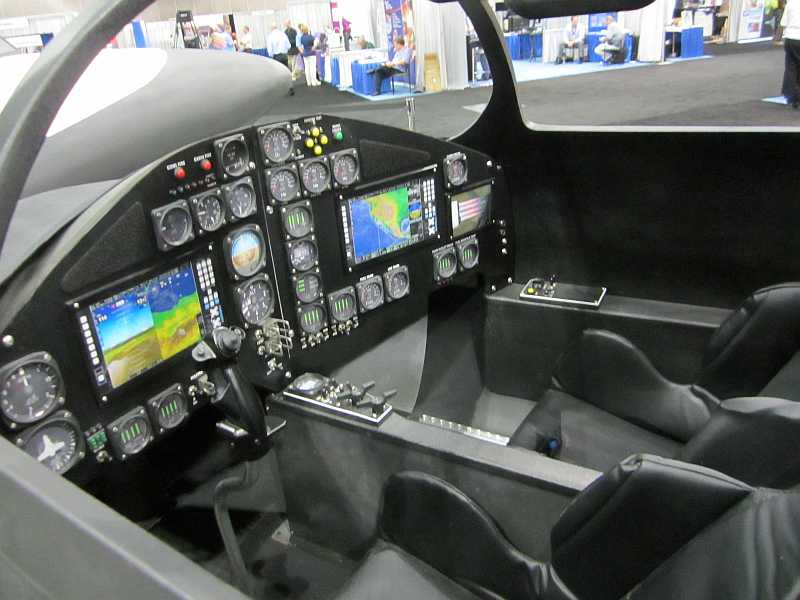

Cockpit simulator for Lynx Mk. I -





Link to comment
Share on other sites

Aviation Week....

XCOR Lynx Mark I Taking Shape In Mojave

Four years after the rocket-powered Lynx project was unveiled at the Los Angeles Convention Center, the presence here of a full-scale vehicle mockup at the Spacecraft Technology Expo reveals two fundamental truths about the ?new space? market.

Firstly, propelling a privately developed spacecraft to suborbit is extremely difficult. When it first announced the project in March 2008, XCOR Aerospace hoped to be flying within two years, yet is only now assembling the first Mark I vehicle at its Mojave, Calif., facility. The company's long journey to suborbit is partly reflected in the many detailed design differences between the mockup and the artist's concept of 2008.

Secondly, the project shows staying power while underscoring XCOR's determination and the resilience of the market. Despite the challenges and the sluggish economy, the company continues to find support and raise funds. XCOR holds more than $60 million in backlog orders and recently closed a $5 million round of equity funding from new and previous investors, including Silicon Valley entrepreneurs and well-known technology ?angel? investors such as Esther Dyson.

XCOR CEO Jeff Greason also continues to exude confidence in the project and the market as a whole. ?It took a while, but we think we're there,? he says, describing the path to Lynx. ?We've been through two generations of rocket-powered vehicles so far. Firstly, there was the EZ-Rocket between 2001 and 2005, which was aimed at pushing down the cost of rocket-powered operations. Then there was the X-Racer, between 2006 and 2008, which was all about operational tempo. We got it down to around nine minutes between flights and up to seven flights per day.?

Now, with the prospect of long-awaited suborbital flights looming in 2013, Greason says the influence of pioneering operations such as the Lynx will be greater than the sum of its parts. ?People talk about the tradeoff between robotic operations and humans?but I don't think a robot has been invented that can enjoy the spaceflight for me, or can do experiments and say, 'Mmmm . . . that looks funny to me.' So it's a game-changer in a way that will impact other uses of human spaceflight.?

Assembly of the initial vehicle is underway, with the truss structure that will support the propulsion system currently being attached to the fuselage. The structure will provide a housing for the vehicle's four XR-5K18 liquid oxygen/kerosene (LOX/RP) rocket engines. Initial tests of the LOX piston pump are about to start, paving the way for closed-loop testing of the engine using its own pump-fed fuel, rather than pressure-fed from offboard sources. XCOR has also received the LOX tank and is issuing requests for bids for the aerodynamic strakes, or fairings, which will enclose the fuel tanks between the fuselage and the wing.

The mockup at the show indicated the changes made to improve the stability and control of the final configuration, including the broader nose section and extended chine. Other changes?which were made after subsonic wind-tunnel trials in 2009 at the U.S. Air Force Research Laboratory in Dayton, Ohio, and follow-on tests at NASA Marshall Space Flight Center?included larger-chord wingtip-mounted vertical fins with extended ventral sections. A final set of wind-tunnel campaigns in both facilities is scheduled shortly to confirm minor aerodynamic changes.


Link to comment
Share on other sites

  • 1 month later...

An interview with Jeff Greason, XCOR boss and a Burt Rutan style aeronautical genius. A lot of people would love it if he were appointed King of NASA.

In it he discusses how XCOR got started, and at the end some tidbits about their project after Lynx: a runway launch/landing 2 stage winged launcher with stages that would fly back to the launch site, and fly multiple missions a day.

Link to comment
Share on other sites

Glad to be watching the birth of the commercial space industry, but I can't help but wish I was born a hundred years into the future. Being 38, I doubt space flight will become affordable/viable for the middle-class within my lifetime.

Link to comment
Share on other sites
