I'm currently in the process of changing around my network setup

i have just got virginmedia's new superhub and a 8 port 10/100 hub.

the devices i have to connect together are

original xbox running xbmc (livingroom)

New xbox360 (livingroom)

old laptop in bedroom running xbmc

networked printer in back bedroom

Buffalo linkstation Nas

and also a couple of spare ports.

the superhub has gigabit and i was wondering whether it would be better to leave the nas connected to that and everthing else through the switch, or just plug everything in to the switch.

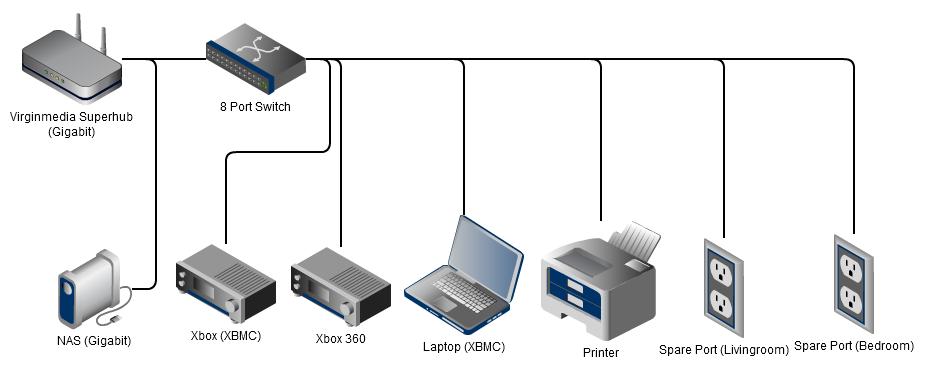

Attached is the network diagram i was going to use.

Cheers, David

post-241181-0-09349000-1339630984_thumb.
