Elliot B. Posted February 24, 2014 Share Posted February 24, 2014 I turned on my work PC this morning (Optiplex 3020 with Intel HD 4600 graphics and 7 x64) and the display (Dell E2414H) was set to 1600x1200. Display Properties is showing this is the maximum resolution I can use. As the display in Display Properties, it's showing "Generic Non-PNP Monitor" I have downloaded and re-installed the latest Intel HD drivers (Win78_64_15.31.16_3234_DELL_setup_ZPE.exe) and E2414H drivers (Dell_E2414H-MONITOR_A00-00_DRVR_K3P9K.exe) from Dell's website. No luck. I have also tried completely uninstalling both and re-installing both - still no luck. There appear to be no issues in Device Manager. The latest Intel HD drivers from Intel's website do not install ("This computer does not meet the minimum requirements for installing the software.") Any ideas? Link to comment Share on other sites More sharing options...
The Evil Overlord Posted February 24, 2014 Share Posted February 24, 2014 Does the pc have on board graphics? (uninstalling might work better if the card was completely removed) And the fact that it's forgotten the make and model of your display raises another alarm, how old is your card now? (As I'm afraid you might need to RMA it) (or a system restore to a time when everything was fine) Link to comment Share on other sites More sharing options...
Elliot B. Posted February 24, 2014 Author Share Posted February 24, 2014 Does the pc have on board graphics? (uninstalling might work better if the card was completely removed) And the fact that it's forgotten the make and model of your display raises another alarm, how old is your card now? (As I'm afraid you might need to RMA it) (or a system restore to a time when everything was fine) I'm pretty sure the video card is on-board. The system is a few weeks old. I have tried fresh Intel HD and Dell monitor driver installations. Link to comment Share on other sites More sharing options...
The Evil Overlord Posted February 24, 2014 Share Posted February 24, 2014 I'm pretty sure the video card is on-board. The system is a few weeks old. I have tried fresh Intel HD and Dell monitor driver installations. Sorry, I assumed it was an added card, so offered troubleshooting specific to that. Link to comment Share on other sites More sharing options...
XerXis Posted February 24, 2014 Share Posted February 24, 2014 Delete the device in device manager. Reboot. Link to comment Share on other sites More sharing options...
Elliot B. Posted February 24, 2014 Author Share Posted February 24, 2014 Delete the device in device manager. Reboot. Tried. Did not work. Link to comment Share on other sites More sharing options...
XerXis Posted February 24, 2014 Share Posted February 24, 2014 manually point it to the correct drivers? Link to comment Share on other sites More sharing options...
Decebalvs Rex Posted February 24, 2014 Share Posted February 24, 2014 Check BIOS, change some values regarding iGPU memory , disable it and restart so the system automatically enables it with default settings. Check BIOS updates online and review your mobo drivers. System restore it for testing purposes. Link to comment Share on other sites More sharing options...
Elliot B. Posted February 24, 2014 Author Share Posted February 24, 2014 manually point it to the correct drivers? Point what where? Device Manager is not showing any problems. I don't think pointing Monitors > Generic Non-PNP Monitor to the Dell drivers will help. Check BIOS, change some values regarding iGPU memory , disable it and restart so the system automatically enables it with default settings. Check BIOS updates online and review your mobo drivers. System restore it for testing purposes. I believe the latest BIOS is already installed. I don't want to mess with the BIOS. Besides, it was fine until it randomly stopped working this morning. So I'm sure it's not a BIOS-related issue. Link to comment Share on other sites More sharing options...
Decebalvs Rex Posted February 24, 2014 Share Posted February 24, 2014 I believe the latest BIOS is already installed. I don't want to mess with the BIOS. Besides, it was fine until it randomly stopped working this morning. So I'm sure it's not a BIOS-related issue. Have you tried System Restore ? Also, changing some iGPU values in BIOS won't hurt your balls. Link to comment Share on other sites More sharing options...
Elliot B. Posted February 24, 2014 Author Share Posted February 24, 2014 Have you tried System Restore ? Also, changing some iGPU values in BIOS won't hurt your balls. Trying System Restore now (last Wednesday). Link to comment Share on other sites More sharing options...
XorpiZ Posted February 24, 2014 Share Posted February 24, 2014 Have you tried on a new user on your computer? Link to comment Share on other sites More sharing options...
(Account no longer active) Posted February 24, 2014 Share Posted February 24, 2014 I'm having a similar issue, with a Dell with i7/HD 2000 graphics. It starts up in 800x600 (instead of 1920x1080) randomly. I find putting the PC to sleep and waking it up again solves the problem. Not sure if there's an official patch to fix this, however do note that drivers on the Dell website aren't always the latest versions available. Link to comment Share on other sites More sharing options...
riahc3 Posted February 24, 2014 Share Posted February 24, 2014 Hello, I don't think pointing Monitors > Generic Non-PNP Monitor to the Dell drivers will help.And why exactly don't you think that will help? Did you try going to Display Properties > Settings > Advanced > Monitor; there, clear the Hide modes that this monitor cannot display checkbox. If all else fails, http://12noon.com/?page_id=80 Link to comment Share on other sites More sharing options...
Elliot B. Posted February 24, 2014 Author Share Posted February 24, 2014 Turns out the VGA cable into the system must have been loose. Works fine after taking it out and plugging it back in. gohpep and The Evil Overlord 2 Share Link to comment Share on other sites More sharing options...
+BudMan MVC Posted February 24, 2014 MVC Share Posted February 24, 2014 VGA cable? You mean DVI or HDMI or display port cable, vga cable is old school analog? Link to comment Share on other sites More sharing options...
Elliot B. Posted February 24, 2014 Author Share Posted February 24, 2014 VGA cable? You mean DVI or HDMI or display port cable, vga cable is old school analog? VGA. This four week old Optiplex 3020, with a 4th-generation i5-4570 (so, quick), still only has a VGA port on the back for some reason. Link to comment Share on other sites More sharing options...
AStalUK Posted February 24, 2014 Share Posted February 24, 2014 The OptiPlex 3020 specs list it as having a DisplayPort out, you can get a DP to DVI cable to use with your monitor. It will give a slightly better image, worth the extra cost of a few pounds. Surprised Dell didn't supply a DisplayPort cable, I did get one with my OptiPlex 9010. Link to comment Share on other sites More sharing options...
riahc3 Posted February 24, 2014 Share Posted February 24, 2014 Hello, Turns out the VGA cable into the system must have been loose. Works fine after taking it out and plugging it back in. One of the pins detect res I believe. BTW, all OptiPlex come with AT least DisplayPort which can be converted to DVI. Link to comment Share on other sites More sharing options...

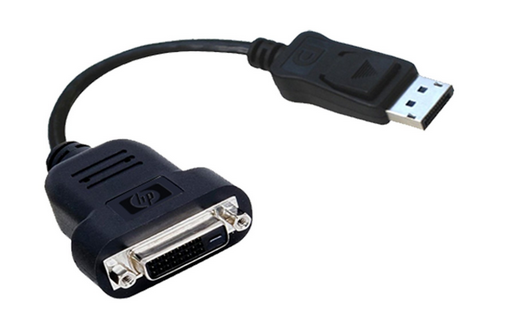

+BudMan MVC Posted February 24, 2014 MVC Share Posted February 24, 2014 Are you using it with old monitor, ok took a look at your monitor it only has 1 Digital Visual Interface connectors (DVI-D) with HDCP 1 Video Graphics Array (VGA) So yeah you should of gotten an adapter for your displayport out of your pc I/O Ports:2 external USB 3.0 ports (rear) and 6 external USB 2.0 ports (2 front, 4 rear); 1 Serial port (optional); 1 PS/2 (optional); 1 RJ-45; 1 VGA; 1 DisplayPort 1.2; 1 Mic-in & 1 Headphone out (front); 1 Mic-in/Line-in & 1 Line-out(rear) should of came with something like this Link to comment Share on other sites More sharing options...
+Frank B. Subscriber² Posted February 24, 2014 Subscriber² Share Posted February 24, 2014 VGA. This four week old Optiplex 3020, with a 4th-generation i5-4570 (so, quick), still only has a VGA port on the back for some reason. I've set up several Optiplex 3020 at work last month and know for a fact that they have a HDMI port on the back. Link to comment Share on other sites More sharing options...
Elliot B. Posted February 24, 2014 Author Share Posted February 24, 2014 Are you using it with old monitor, ok took a look at your monitor it only has 1 Digital Visual Interface connectors (DVI-D) with HDCP 1 Video Graphics Array (VGA) So yeah you should of gotten an adapter for your displayport out of your pc I/O Ports:2 external USB 3.0 ports (rear) and 6 external USB 2.0 ports (2 front, 4 rear); 1 Serial port (optional); 1 PS/2 (optional); 1 RJ-45; 1 VGA; 1 DisplayPort 1.2; 1 Mic-in & 1 Headphone out (front); 1 Mic-in/Line-in & 1 Line-out(rear) should of came with something like this dp-dvid-adapt.png The system did not come with one of those cables. I've set up several Optiplex 3020 at work last month and know for a fact that they have a HDMI port on the back. I was wrong about it only having a VGA port, it also has a DP port. But absolutely not a HDMI port. Link to comment Share on other sites More sharing options...
+BudMan MVC Posted February 24, 2014 MVC Share Posted February 24, 2014 yeah if you look at the i/o ports listed for the 3020 there is no hdmi. Did you add a different video card that has it on the card vs the integrated video? As to the adapter not in the box - did you order it with or without monitor? The adapters are only a few bucks but its the principle of the thing - if you just bought it a few weeks ago I would contact dell on why no adapter. Link to comment Share on other sites More sharing options...
