Welcome to the server photos thread. In this thread you may post pics of your server.

Please be mindful of our members on dial-up and try to keep the dimensions of the pics and the size of the files to a respectable size for 1024 x 768 viewers. Please refrain from quoting images in your replies.

I will also ask that you link to images on your own space, as much as possible.

The usual forum rules also apply.

The last thread can be found here.

[ray_finkle]

Top 2: 2X 6 core Xeon's & 64GB of RAM
Bottom 1: 2X 4 core Xeon's 32 GB of RAM

[Aergan]

Here is my home server:

[sharedmedia=core:attachments:323996]
It resides next to an Xbox 360 Elite. Noise-wise it's about the same as an Xbox 360s and nowhere near as bad as it's shelf-dwelling sibling.

Recently added an extra HDD to offload the OS, Active Directory & system ISO images onto:

[sharedmedia=core:attachments:323978]

[sharedmedia=core:attachments:323990]

[sharedmedia=core:attachments:323992]

[sharedmedia=core:attachments:323994]

Specs:
Base Unit | Silverstone Grandia GD06
OS | Windows Server 2012 Standard [Hyper-V]
PSU | Cooler Master 650w
Motherboard | Acer AMD RS780
CPU | AMD Phenom X4 2.2Ghz
RAM | 8GB [4x2GB] DDR2
GFX | Nvidia GeForce GTX 650 1GB
HDD #1 | Seagate Mobile 640GB 16MB Cache SATA II
HDD #2 | Samsung Spinpoint F2 1TB 32MB Cache SATA II
HDD #3 | 2x Samsung Spinpoint F3 1.5TB 32MB Cache SATA II [Raid Stripe]
HDD #4 | 2x Western Digital Caviar Green 3TB SATA III [Raid Stripe]
LAN #1 | Marvel Gigabit Ethernet 9KB Jumbo Frame [Teamed Hyper-V Port - On-board]
LAN #2 | Realtek Gigabit Ethernet 9KB Jumbo Frame [Teamed Hyper-V Port - PCI]
USB | Fortuna MCE Remote, Xbox 360 Wireless Controller Receiver

Used for:
Active Directory, Backups, Compiling, DFS, DHCP, DC, DNS, File/Download Server, Encoding, Emulation, Hyper-V (2x Linux, 1x Windows 8 & 1x Server 2012 Standard), File Server, Media Server, Scheduled tasks, Transcoding, Visual Studio 2012 services, XBMC & probably a lot more if I sit and think about the VM's.

[M1cky_B]

My Home Server:



Motherboard: ASUS P8P67
CPU: Intel Core i5 2500 running @ 3.3 GHz
RAM: 16 GBytes
HDD:

• Intel 120GB 520 SSD (Boot)

• 4 x 2TB SATA2 Drives running in a RAID 5 array

• 5 x 3TB SATA2 Drives running in a Windows Storage Space

Optical Drive: 2 x LG DVD Burners
Case: Coolermaster Storm Trooper
Power Supply: Thermaltake 700W TR2 BRONZE
OS: Windows Server 2012 - Standard with Essentials backup features

Uses: Active Directory, PC Backups, DNS, Torrent Client, Hyper-V (Windows 7), File Server, RemoteFX (GTX 650)

[+Crisp]

M1cky_B, on 15 January 2013 - 06:43, said:

My Home Server:



Motherboard: ASUS P8P67
CPU: Intel Core i5 2500 running @ 3.3 GHz
RAM: 16 GBytes
HDD:

• Intel 120GB 520 SSD (Boot)

• 4 x 2TB SATA2 Drives running in a RAID 5 array

• 5 x 3TB SATA2 Drives running in a Windows Storage Space

Optical Drive: 2 x LG DVD Burners
Case: Coolermaster Storm Trooper
Power Supply: Thermaltake 700W TR2 BRONZE
OS: Windows Server 2012 - Standard with Essentials backup features

Uses: Active Directory, PC Backups, DNS, Torrent Client, Hyper-V (Windows 7), File Server, RemoteFX (GTX 650)

What make / model is that x5 hot swap bay?

I've been looking at getting some IcyBox's, but they're so damn expensive.

Edit:- Never mind, found it; Norco SS-500

[Archstroke]

My media server
Motherboard: Dell 0GM819
CPU: Intel Core 2 Duo E7200 @ 2.53 GHz
RAM: 3 GBytes
HDD: WD 250 GBytes
Seagate 1.5 TBytes
Optical Drives: Toshiba DVD-ROM drive
Optiarc DVD +-RW drive
OS: Windows 7

Uses: hosting media on my network for streaming, hosting a backup of my music and other files, playing media through the TV, storing backup images for my netbook and main pc

[Sikh]

ray_finkle, on 31 December 2012 - 13:00, said:

Top 2: 2X 6 core Xeon's & 64GB of RAM
Bottom 1: 2X 4 core Xeon's 32 GB of RAM

Please tell me you dont have these at home, and if you do WHAT ARE YOU DOING WITH THEM?

But by far the most badass rack server setup.

All the other tower server setups, I like.

Ill post my rack soon, gotta actually get good pictures

[trek]

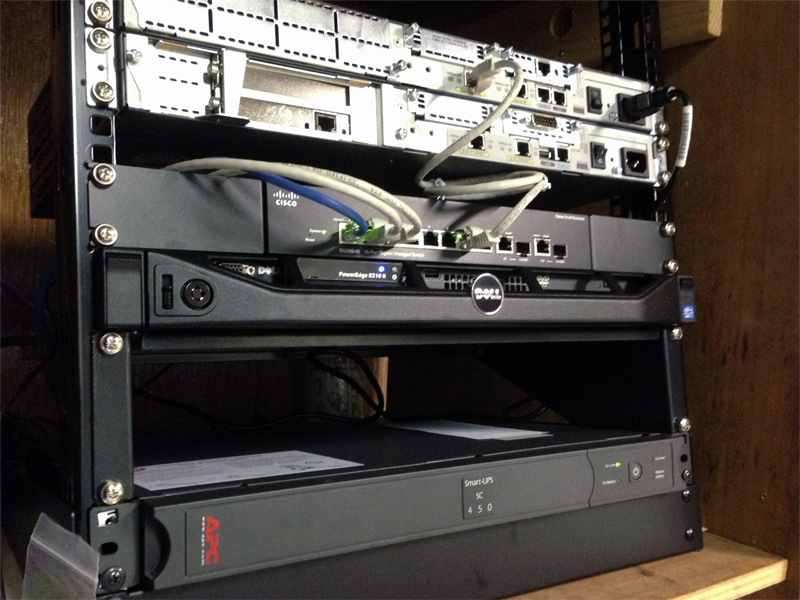

Half done my Cisco Lab... Need switches.

The server is a Dell R210 ii; specs: Intel Xeon E3-1240v2, 16GB ECC RAM, 2x2TB SAS Drives. Running VMWare ESXi 5.1 with 3 or 4 VMs at a time.

[+remixedcat]

THIS IS HOW YOU SERVER

[+rdlenk]

Why not,

Pano of some of the servers at work:



For lolz:

[ndoggfromhell]

My 6Tb Home Server. Serves all the xbox360's in the house and laptops. Neighbors connect to my wifi to stream from it... They can't get to the internet through my wifi connection.




I didn't do much cable management. Drives are all cool so I'm not going to bother.
