what is this connector?


  • Please log in to reply
14 replies to this topic

#1 genghis

genghis

    Neowinian

  • 143 posts
  • Joined: 17-March 04

Posted 06 February 2013 - 20:16

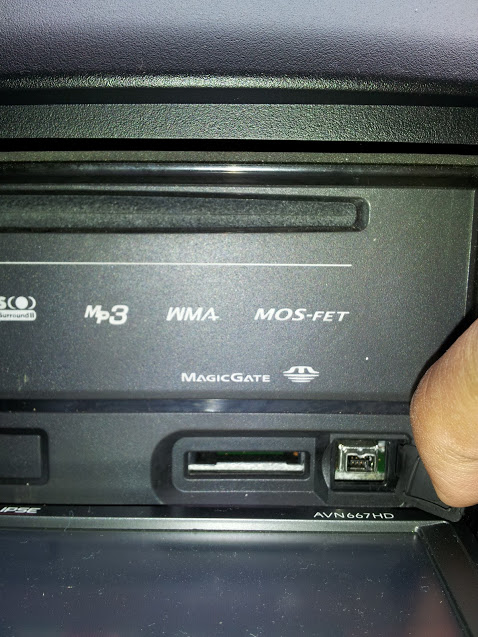

what is this connector? it on a Car Stereo AVN667HD.



#2 DaveLegg

DaveLegg

    Coderator at heart

  • 7,749 posts
  • Joined: 31-October 04
  • Location: Oxford, UK

Posted 06 February 2013 - 20:19

Looks kinda like a mini-firewire port?

#3 Aletheia

Aletheia

    Neowinian

  • 179 posts
  • Joined: 30-June 09

Posted 06 February 2013 - 20:26

if it is on your car radio, it might be for GPS antenna... But I am not totally sure.

#4 KRazpopov

KRazpopov

    Neowinian

  • 486 posts
  • Joined: 27-April 10
  • Location: Sofia, Bulgaria
  • OS: Windows 8 Pro
  • Phone: Samsung Omnia 7

Posted 06 February 2013 - 20:30

Looks like mini-firewire.

#5 tubster

tubster

    Neowinian

  • 14 posts
  • Joined: 26-May 03
  • Location: Atlanta Georgia

Posted 06 February 2013 - 20:31

It's a DVI connector

#6 1941

1941

    Banned

  • 18,175 posts
  • Joined: 17-July 06

Posted 06 February 2013 - 20:32

I think it is for digital audio

#7 Aheer.R.S.

Aheer.R.S.

    I cannot Teach Him, the Boy has no Patience!

  • 12,183 posts
  • Joined: 15-October 10
  • Location: Wolverhampton, West Midlands

Posted 06 February 2013 - 20:34

if it's the one next to the magic gate, I think it might be for connecting a screen

#8 +techbeck

techbeck

    It's not that I am lazy, it's that I just don't care

  • 19,652 posts
  • Joined: 20-January 05

Posted 06 February 2013 - 20:36

DV-Digital Video Port. Common on digital cameras/camcorders.......

#9 tim_s

tim_s

    Default

  • 401 posts
  • Joined: 07-January 13
  • OS: OSX (Macbook Pro i7), Windows 7 (Gaming), Gentoo
  • Phone: iPhone 5s

Posted 06 February 2013 - 20:36

GPS

LINK: http://yahoo.aleado....6443#enlargeimg

#10 +techbeck

techbeck

    It's not that I am lazy, it's that I just don't care

  • 19,652 posts
  • Joined: 20-January 05

Posted 06 February 2013 - 20:42

It's a DVI connector


Thats what it is. Would make no sense for a car stereo to have firewire.

GPS

LINK: http://yahoo.aleado....6443#enlargeimg


That connector doesnt look like it will fit.

Attached Images

  • images.jpg


#11 tim_s

tim_s

    Default

  • 401 posts
  • Joined: 07-January 13
  • OS: OSX (Macbook Pro i7), Windows 7 (Gaming), Gentoo
  • Phone: iPhone 5s

Posted 06 February 2013 - 20:45

Thats what it is. Would make no sense for a car stereo to have firewire.



That connector doesnt look like it will fit.


You win!

10, 000 Neowin dollars

#12 SirEvan

SirEvan

    Neowinian Senior

  • 3,398 posts
  • Joined: 17-April 03
  • Location: Santa Clara, CA
  • OS: Windows 8
  • Phone: HTC One (AT&T)

Posted 06 February 2013 - 20:58

Thats what it is. Would make no sense for a car stereo to have firewire.



That connector doesnt look like it will fit.


vision fail. if you look at the image the OP posted, there is a big area around the connector, so conceivably the connector on that gps could fit in there, the image you posted is from a video camera or laptop, and does not have the large empty area around it that the OP's image did.

OP: I'm gonna go out on a limb and state the obvious here...find the manual for your radio and see what it says because I GUARANTEE it will tell you what each connector is for. *SMH*

#13 Detection

Detection

    Detecting stuff...

  • 8,369 posts
  • Joined: 30-October 10
  • Location: UK
  • OS: 7 SP1 x64

Posted 06 February 2013 - 21:03

Googling that model number under the port brings up this

http://translate.goo...ved=0CDcQ7gEwAA

#14 +techbeck

techbeck

    It's not that I am lazy, it's that I just don't care

  • 19,652 posts
  • Joined: 20-January 05

Posted 06 February 2013 - 21:06

Googling that model number under the port brings up this

http://translate.goo...ved=0CDcQ7gEwAA


Thanks for that. What I figured, a video port. The cable to buy for it is here....

http://global.rakute...tem/o-kw-1275a/

I am guessing the stereo has a display on it? Looks like it from the pick. So video port is probably to hook up a DVD player or something like that.

Attached Images

  • Capture.PNG


#15 +techbeck

techbeck

    It's not that I am lazy, it's that I just don't care

  • 19,652 posts
  • Joined: 20-January 05

Posted 06 February 2013 - 21:17

vision fail.


That comment really needed?

the image you posted is from a video camera or laptop,


Yes, I know. I posted the pic to display the DV in/out and what the port was.
