Configure OpenVPN (GUI) on Ubuntu 12.04

Answered Go to the full post

  • Please log in to reply
17 replies to this topic

#1 Koshur

Koshur

    Neowite

  • Tech Issues Solved: 1
  • Joined: 08-February 12
  • OS: Win7, Ubuntu 12.04LTS, PinguyOS 11.10, Backtrack 5R2, Zorin OS

Posted 30 November 2013 - 17:16

Hi



I'm trying to configure OpenVPN by following http://www.securityk...inux_nm/ubuntu/. I followed the steps as mentioned but when I connect (wifi icon in taskbar > VPN connections > Security Kiss) it connects(as per the status notification) but I dont have access to internet, I cant browser. All the files all in /home/koshur/securitykiss_winopenvpn_client02832283 and I've uncommented the server in openvpn.conf file. The guide on Ubuntu help page shows the command line method :https://help.ubuntu....de/openvpn.html. I was looking to do it through network connections GUI though.



I think I'm missing something???

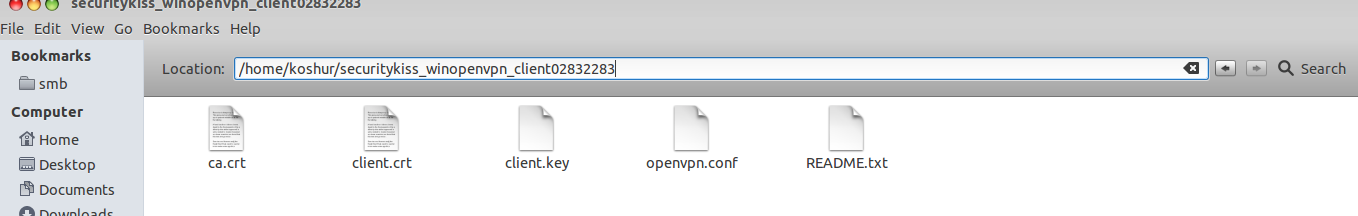

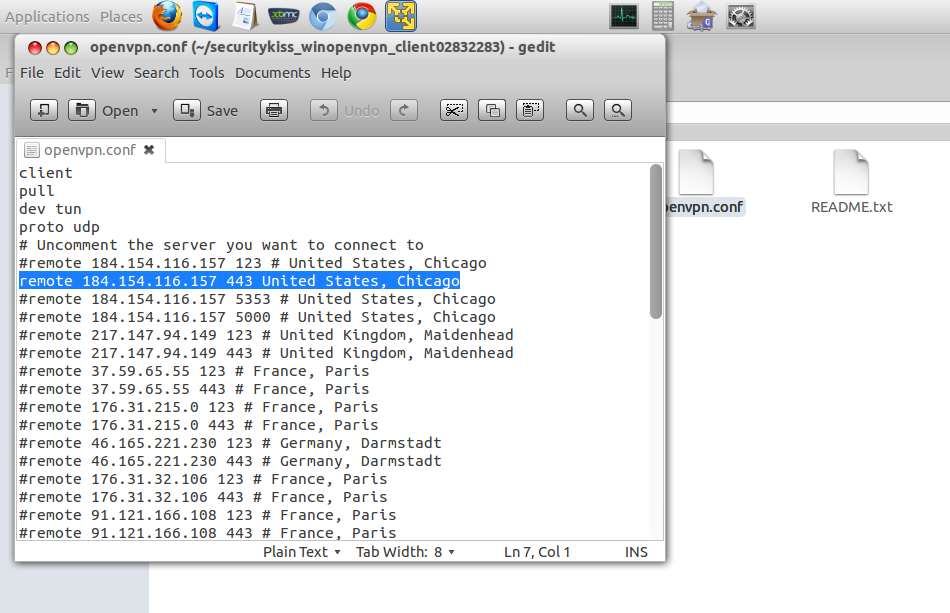

Screenshot from 2013-11-30 22:37:50.png  Screenshot from 2013-11-30 22:43:19.png

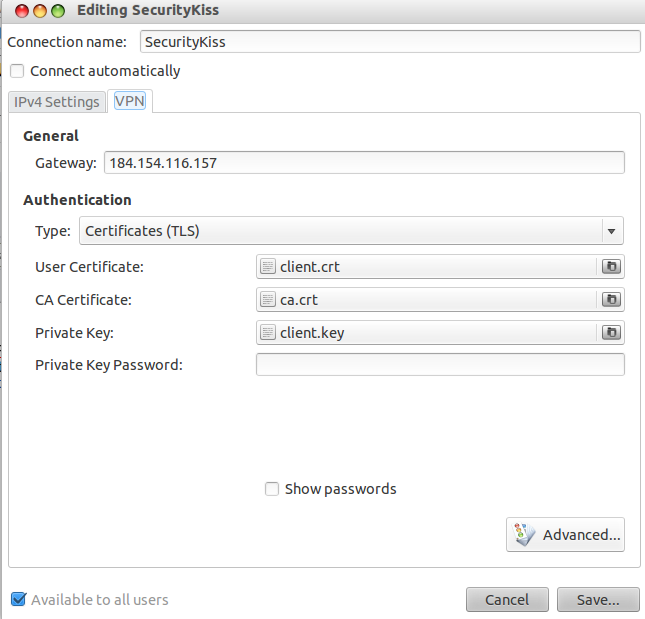

Screenshot from 2013-11-30 22:39:06.png  Screenshot from 2013-11-30 22:41:06.png





Thanks
Mark



Best Answer +BudMan , 04 December 2013 - 18:23

ok - I just went through this on my ubuntu 13.10 desktop.. Followed the instructons and bing bang working just fine

[attachment=353635:working.png]

Did not have to do anything with that bug, etc. etc. Only thing I had to do that was not covered in the instructions is my client.key when I untared it from tar.gz file was set to 700, and was not showing up in the dialog.. So changed it to 755 and it showed up so I could pick it.

Bing bang zoom working just fine.. I would suggest you start over.. using openvpn with the network manager does not require a opvn file like you showed, and what I pulled at first with the windows configuration.

if you have some sort of conf or opvn file for openvpn -- like you showed, maybe that is what is causing you the issues?

This took all of 2 minutes to setup following their instructions. Can see I am going through their servers

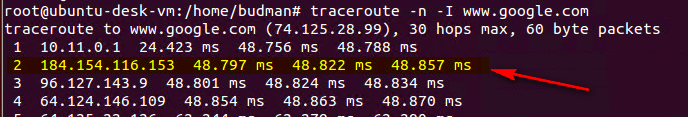

[attachment=353639:trace.png]

edit: So been connected this whole time, moved some data through the vpn. Seems pretty stable, etc.
[attachment=353645:traffic.png] Go to the full post



#2 +BudMan

BudMan

    Neowinian Senior

  • Tech Issues Solved: 86
  • Joined: 04-July 02
  • Location: Schaumburg, IL
  • OS: Win7, Vista, 2k3, 2k8, XP, Linux, FreeBSD, OSX, etc. etc.

Posted 01 December 2013 - 06:52

Well for starters from the config your showing

proto udp

but then in that gui you have use tcp connection checked.

edit:
Ok in the readme.txt it states

In openvpn.conf uncomment the server you want to connect to and update the 'proto' line:
-tcp when port 443 is used
-udp when port 123 is used

So you didn't update the proto line?

#3 OP Koshur

Koshur

    Neowite

  • Tech Issues Solved: 1
  • Joined: 08-February 12
  • OS: Win7, Ubuntu 12.04LTS, PinguyOS 11.10, Backtrack 5R2, Zorin OS

Posted 03 December 2013 - 14:45

ok. changed it to proto tcp. but still no luck. get the message for vpn successfully connected and after a minute it says connection failed.

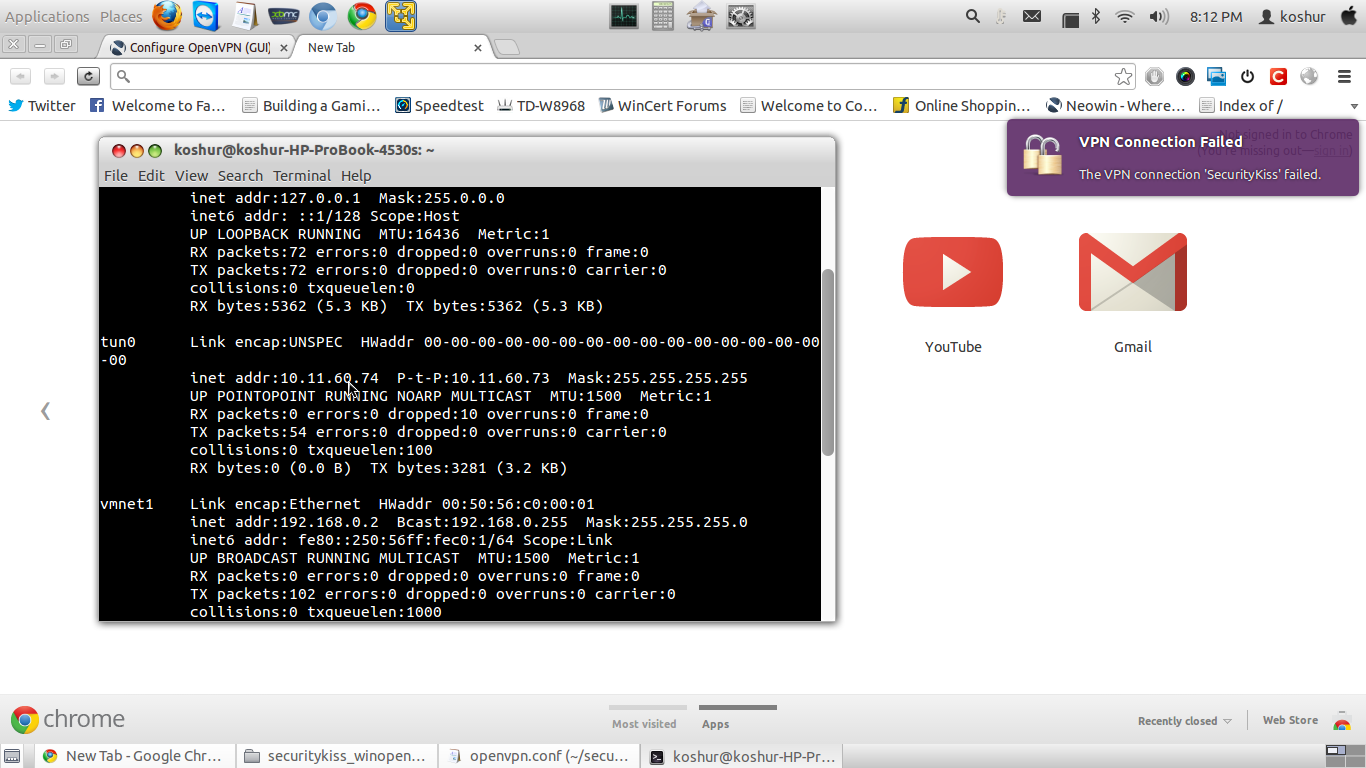

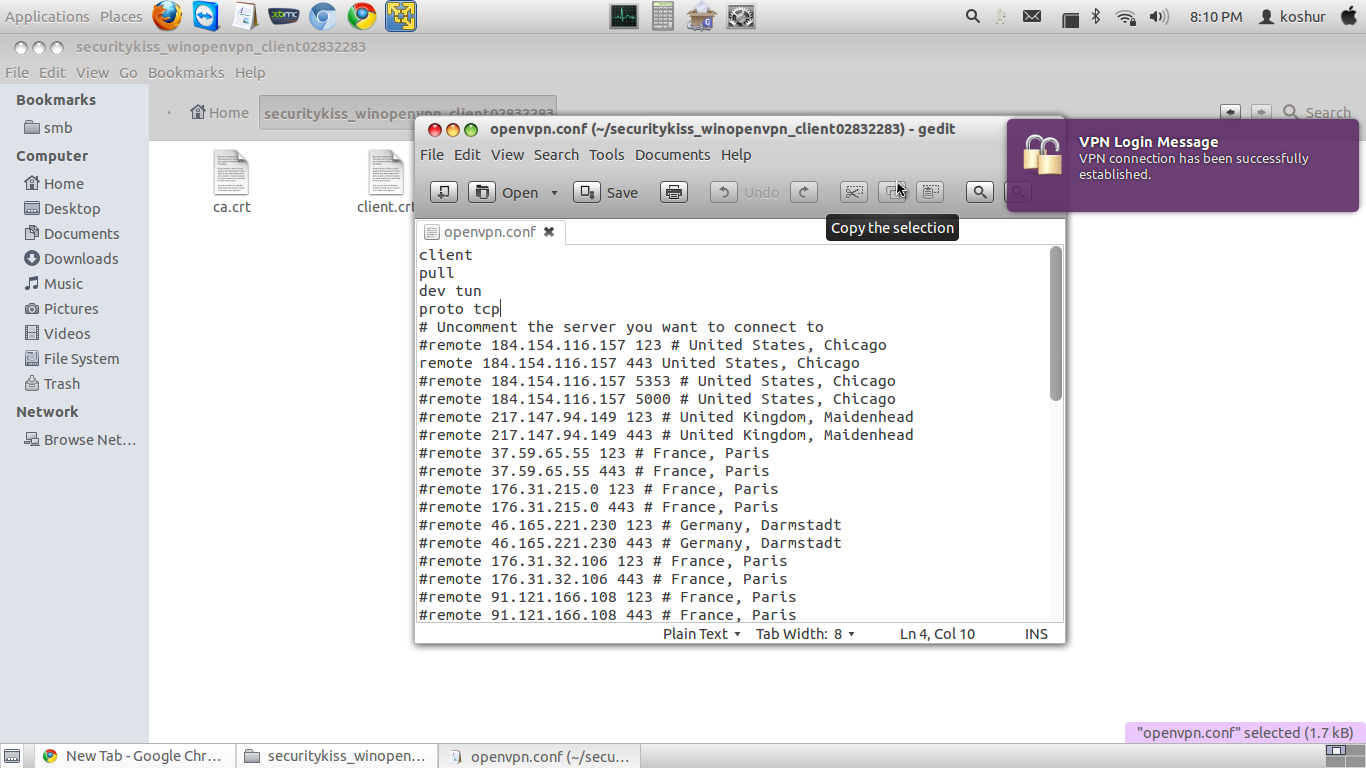

Screenshot from 2013-12-03 20:10:56.png  Screenshot from 2013-12-03 20:12:21.png











#4 Redmak

Redmak

    Neowinian Senior

  • Tech Issues Solved: 39
  • Joined: 09-July 01
  • Location: Netherlands
  • OS: Windows 8
  • Phone: HTC One

Posted 03 December 2013 - 15:15

Do you have any logs you can post? (and the complete openvpn.conf file)



#5 +BudMan

BudMan

    Neowinian Senior

  • Tech Issues Solved: 86
  • Joined: 04-July 02
  • Location: Schaumburg, IL
  • OS: Win7, Vista, 2k3, 2k8, XP, Linux, FreeBSD, OSX, etc. etc.

Posted 03 December 2013 - 15:46

Well looks like you got a connection and IP there..

I would change your conf file to be at verb 3 at min, and then lets take a look at the log.

#6 OP Koshur

Koshur

    Neowite

  • Tech Issues Solved: 1
  • Joined: 08-February 12
  • OS: Win7, Ubuntu 12.04LTS, PinguyOS 11.10, Backtrack 5R2, Zorin OS

Posted 03 December 2013 - 16:45

Where would i find the log file. path?



Here's what inside conf file

client
pull
dev tun
proto tcp
# Uncomment the server you want to connect to
#remote 184.154.116.157 123 # United States, Chicago
remote 184.154.116.157 443 United States, Chicago
#remote 184.154.116.157 5353 # United States, Chicago
#remote 184.154.116.157 5000 # United States, Chicago
#remote 217.147.94.149 123 # United Kingdom, Maidenhead
#remote 217.147.94.149 443 # United Kingdom, Maidenhead
#remote 37.59.65.55 123 # France, Paris
#remote 37.59.65.55 443 # France, Paris
#remote 176.31.215.0 123 # France, Paris
#remote 176.31.215.0 443 # France, Paris
#remote 46.165.221.230 123 # Germany, Darmstadt
#remote 46.165.221.230 443 # Germany, Darmstadt
#remote 176.31.32.106 123 # France, Paris
#remote 176.31.32.106 443 # France, Paris
#remote 91.121.166.108 123 # France, Paris
#remote 91.121.166.108 443 # France, Paris
#remote 46.165.197.1 123 # Germany, Frankfurt
#remote 46.165.197.1 443 # Germany, Frankfurt
#remote 64.251.22.13 123 # United States, Miami
#remote 64.251.22.13 443 # United States, Miami
#remote 64.251.22.13 5353 # United States, Miami
#remote 64.251.22.13 5000 # United States, Miami
#remote 31.24.33.221 123 # United Kingdom, Newcastle
#remote 31.24.33.221 443 # United Kingdom, Newcastle
#remote 62.75.181.139 123 # Germany, Bonn
#remote 62.75.181.139 443 # Germany, Bonn
#remote 109.75.167.42 123 # United Kingdom, Leeds
#remote 109.75.167.42 443 # United Kingdom, Leeds
#remote 78.129.174.84 123 # United Kingdom, London
#remote 78.129.174.84 443 # United Kingdom, London

resolv-retry infinite
nobind
persist-key
persist-tun
mute-replay-warnings
ca ca.crt
cert client.crt
key client.key
ns-cert-type server
comp-lzo
verb 3
keepalive 5 28
route-delay 3
win-sys env


#7 OP Koshur

Koshur

    Neowite

  • Tech Issues Solved: 1
  • Joined: 08-February 12
  • OS: Win7, Ubuntu 12.04LTS, PinguyOS 11.10, Backtrack 5R2, Zorin OS

Posted 03 December 2013 - 16:46

Well looks like you got a connection and IP there..

I would change your conf file to be at verb 3 at min, and then lets take a look at the log.



verb 3 at min?



#8 +BudMan

BudMan

    Neowinian Senior

  • Tech Issues Solved: 86
  • Joined: 04-July 02
  • Location: Schaumburg, IL
  • OS: Win7, Vista, 2k3, 2k8, XP, Linux, FreeBSD, OSX, etc. etc.

Posted 03 December 2013 - 16:49

It is there in the file - this determines the logging level verbosity.

As to path of connection, I believe since your using the connection manager plugin that it would be in your syslog?? Don't quote me on that I would have to fire up using openvpn with gui like your doing, etc.

You should be able to just grep for it, something like

cat /var/log/syslog | grep VPN

I will have to look to what I got in config file when I setup a free account with that provider, not sure why

win-sys env

should be in a linux opvn file?

OK -- I just downloaded the linux bundle from them and there is no opvn file included.. Your just suppose to setup the network manager with the specific info. So if you have a openvpn configuration file that is meant for windows in your linux system, that could be causing you a problem.

I will have to fire up my desktop ubuntu vm and get a test run. But that might be your problem. I would start over and make sure you grab the linux configuration bundle for openvpn. It only includes you ca.crt the client.crt and the client.key with a readme of the servers to use udp or tcp, etc.

these are the instructions your following?
http://www.securityk...inux_nm/ubuntu/

#9 OP Koshur

Koshur

    Neowite

  • Tech Issues Solved: 1
  • Joined: 08-February 12
  • OS: Win7, Ubuntu 12.04LTS, PinguyOS 11.10, Backtrack 5R2, Zorin OS

Posted 03 December 2013 - 16:55

koshur@koshur-HP-ProBook-4530s:~$ cat /var/log/syslog | grep VPN
Dec  3 20:05:02 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN: loaded org.freedesktop.NetworkManager.pptp
Dec  3 20:05:02 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN: loaded org.freedesktop.NetworkManager.openvpn
Dec  3 20:08:32 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> Starting VPN service 'openvpn'...
Dec  3 20:08:32 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' started (org.freedesktop.NetworkManager.openvpn), PID 3156
Dec  3 20:08:32 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' appeared; activating connections
Dec  3 20:08:32 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: starting (3)
Dec  3 20:08:32 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (Connect) reply received.
Dec  3 20:08:32 koshur-HP-ProBook-4530s nm-openvpn[3159]: OpenVPN 2.2.1 x86_64-linux-gnu [SSL] [LZO2] [EPOLL] [PKCS11] [eurephia] [MH] [PF_INET6] [IPv6 payload 20110424-2 (2.2RC2)] built on Feb 27 2013
Dec  3 20:08:52 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (IP Config Get) reply received.
Dec  3 20:08:52 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN Gateway: 184.154.116.157
Dec  3 20:08:55 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (IP Config Get) complete.
Dec  3 20:08:56 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: started (4)
Dec  3 20:10:16 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> VPN plugin failed: 2
Dec  3 20:10:16 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> VPN plugin failed: 1
Dec  3 20:10:16 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: stopped (6)
Dec  3 20:10:16 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state change reason: 0
Dec  3 20:10:16 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> error disconnecting VPN: Could not process the request because no VPN connection was active.
Dec  3 20:10:22 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' disappeared
Dec  3 20:10:30 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> Starting VPN service 'openvpn'...
Dec  3 20:10:30 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' started (org.freedesktop.NetworkManager.openvpn), PID 3445
Dec  3 20:10:30 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' appeared; activating connections
Dec  3 20:10:30 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: starting (3)
Dec  3 20:10:30 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (Connect) reply received.
Dec  3 20:10:30 koshur-HP-ProBook-4530s nm-openvpn[3448]: OpenVPN 2.2.1 x86_64-linux-gnu [SSL] [LZO2] [EPOLL] [PKCS11] [eurephia] [MH] [PF_INET6] [IPv6 payload 20110424-2 (2.2RC2)] built on Feb 27 2013
Dec  3 20:10:51 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (IP Config Get) reply received.
Dec  3 20:10:51 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN Gateway: 184.154.116.157
Dec  3 20:10:54 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (IP Config Get) complete.
Dec  3 20:10:54 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: started (4)
Dec  3 20:12:18 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> VPN plugin failed: 2
Dec  3 20:12:18 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> VPN plugin failed: 1
Dec  3 20:12:18 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: stopped (6)
Dec  3 20:12:18 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state change reason: 0
Dec  3 20:12:18 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> error disconnecting VPN: Could not process the request because no VPN connection was active.
Dec  3 20:12:24 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' disappeared
Dec  3 22:16:01 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> Starting VPN service 'openvpn'...
Dec  3 22:16:01 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' started (org.freedesktop.NetworkManager.openvpn), PID 7787
Dec  3 22:16:01 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' appeared; activating connections
Dec  3 22:16:01 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: starting (3)
Dec  3 22:16:01 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (Connect) reply received.
Dec  3 22:16:01 koshur-HP-ProBook-4530s nm-openvpn[7790]: OpenVPN 2.2.1 x86_64-linux-gnu [SSL] [LZO2] [EPOLL] [PKCS11] [eurephia] [MH] [PF_INET6] [IPv6 payload 20110424-2 (2.2RC2)] built on Feb 27 2013
Dec  3 22:16:26 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (IP Config Get) reply received.
Dec  3 22:16:26 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN Gateway: 184.154.116.157
Dec  3 22:16:29 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (IP Config Get) complete.
Dec  3 22:16:29 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: started (4)
Dec  3 22:17:55 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> VPN plugin failed: 2
Dec  3 22:17:55 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> VPN plugin failed: 1
Dec  3 22:17:55 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: stopped (6)
Dec  3 22:17:55 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state change reason: 0
Dec  3 22:17:55 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> error disconnecting VPN: Could not process the request because no VPN connection was active.
Dec  3 22:18:01 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' disappeared
Dec  3 22:18:11 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> Starting VPN service 'openvpn'...
Dec  3 22:18:11 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' started (org.freedesktop.NetworkManager.openvpn), PID 8124
Dec  3 22:18:11 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' appeared; activating connections
Dec  3 22:18:11 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: starting (3)
Dec  3 22:18:11 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (Connect) reply received.
Dec  3 22:18:11 koshur-HP-ProBook-4530s nm-openvpn[8127]: OpenVPN 2.2.1 x86_64-linux-gnu [SSL] [LZO2] [EPOLL] [PKCS11] [eurephia] [MH] [PF_INET6] [IPv6 payload 20110424-2 (2.2RC2)] built on Feb 27 2013
Dec  3 22:18:34 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (IP Config Get) reply received.
Dec  3 22:18:34 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN Gateway: 184.154.116.157
Dec  3 22:18:38 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN connection 'SecurityKiss' (IP Config Get) complete.
Dec  3 22:18:38 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: started (4)
Dec  3 22:20:02 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> VPN plugin failed: 2
Dec  3 22:20:02 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> VPN plugin failed: 1
Dec  3 22:20:02 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state changed: stopped (6)
Dec  3 22:20:02 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN plugin state change reason: 0
Dec  3 22:20:02 koshur-HP-ProBook-4530s NetworkManager[1370]: <warn> error disconnecting VPN: Could not process the request because no VPN connection was active.
Dec  3 22:20:08 koshur-HP-ProBook-4530s NetworkManager[1370]: <info> VPN service 'openvpn' disappeared



#10 OP Koshur

Koshur

    Neowite

  • Tech Issues Solved: 1
  • Joined: 08-February 12
  • OS: Win7, Ubuntu 12.04LTS, PinguyOS 11.10, Backtrack 5R2, Zorin OS

Posted 03 December 2013 - 17:01

looks like there is a related bug ?? https://bugs.launchp...vpn/ bug/280160



#11 Kreuger

Kreuger

    Neowin's Local Grouch

  • Joined: 29-December 03
  • Location: Ontario, Canada

Posted 03 December 2013 - 17:02

I don't know enough about networking to help but might I suggest you paste that on PasteBin or something similar and link to it next time?



#12 OP Koshur

Koshur

    Neowite

  • Tech Issues Solved: 1
  • Joined: 08-February 12
  • OS: Win7, Ubuntu 12.04LTS, PinguyOS 11.10, Backtrack 5R2, Zorin OS

Posted 03 December 2013 - 17:04

@Kreuger- point taken  :)



#13 +BudMan

BudMan

    Neowinian Senior

  • Tech Issues Solved: 86
  • Joined: 04-July 02
  • Location: Schaumburg, IL
  • OS: Win7, Vista, 2k3, 2k8, XP, Linux, FreeBSD, OSX, etc. etc.

Posted 03 December 2013 - 17:13

looks like there is a related bug ?? https://bugs.launchp...vpn/ bug/280160

From a quick read of that bugreport yes, I would try the work around listed in post #19



I confirm this same bug in Ubuntu 12.04 LTS Precise Pangolin. The same workaround works:

Steps to workaround:

1. Change filename of /usr/lib/NetworkManager/nm-openvpn-service-openvpn-helper
cd /usr/lib/NetworkManager/
mv nm-openvpn-service-openvpn-helper nm-openvpn-service-openvpn-helper.dist

2. Create new file with same old name:
nano nm-openvpn-service-openvpn-helper

3. Fill the file with variables to export and original executable. Copy and paste this:

#!/bin/bash

[ -z "$ifconfig_local" ] && export ifconfig_local=$4
[ -z "$ifconfig_remote" ] && export ifconfig_remote=$5

/usr/lib/NetworkManager/nm-openvpn-service-openvpn-helper.dist $*

4. Make the new file executable:
chmod +x nm-openvpn-service-openvpn-helper

Now it works!
tags: 	added: precise


#14 OP Koshur

Koshur

    Neowite

  • Tech Issues Solved: 1
  • Joined: 08-February 12
  • OS: Win7, Ubuntu 12.04LTS, PinguyOS 11.10, Backtrack 5R2, Zorin OS

Posted 04 December 2013 - 12:40

ok, i followed the steps and here's what the files look now:

root@koshur-HP-ProBook-4530s:/usr/lib/NetworkManager# ls
debug-helper.py                    nm-dispatcher.action
ifblacklist_migrate.sh             nm-openvpn-auth-dialog
libnm-openvpn-properties.so        nm-openvpn-service
libnm-pptp-properties.so           nm-openvpn-service-openvpn-helper
libnm-settings-plugin-ifupdown.so  nm-openvpn-service-openvpn-helper.dist
nm-avahi-autoipd.action            nm-openvpn-service-openvpn-helper.dist $*
nm-crash-logger                    nm-pptp-auth-dialog
nm-dhcp-client.action              nm-pptp-service





Now, when i try to connect, It says VPN connection failed



#15 OP Koshur

Koshur

    Neowite

  • Tech Issues Solved: 1
  • Joined: 08-February 12
  • OS: Win7, Ubuntu 12.04LTS, PinguyOS 11.10, Backtrack 5R2, Zorin OS

Posted 04 December 2013 - 13:09

i tried changing the gateway address to France in openvpn.conf but it doesn't connect.





Click here to login or here to register to remove this ad, it's free!
