Sound over HDMI help

audio hdmi nvidia

  • Please log in to reply
16 replies to this topic

#1 Ecion

Ecion

    Neowinian

  • Joined: 12-April 04
  • Location: United Kingdom

Posted 08 October 2012 - 10:19

Hi Guys,
I really need some help with this one.
I purchased a new PC, with a Gigabyte GA-H61MA-D2V motherboard that has on board realtek audio, I also purchased a nvidia geforce GT630 graphics card which has a built in audio processor and hdmi connection which is going to my LG 42PL6010 tv.

I've installed drivers for chipset, audio, graphics, but I'm unable to get any sound out of the HDMI port. I've set the default play back device as as the tv in control panel - sound. Choosing to test shows the audio bars moving but no sound comes out.
I've checked bios settings, tried with only audio drivers, or only graphics drivers, no joy.

I've tested the cable and tv with a hdmi equipped laptop, so can rule those out as a possible cause.

many thanks


#2 redvamp128

redvamp128

    Neowinian Senior

  • Joined: 06-October 01

Posted 09 October 2012 - 07:00

I read on another forum- about - going into the sound options and selecting the other option instead of the speakers... Also you might check for the audio input settings in your TV. Just two thoughts

#3 OP Ecion

Ecion

    Neowinian

  • Joined: 12-April 04
  • Location: United Kingdom

Posted 09 October 2012 - 08:42

yea have already done both but no joy.

#4 Kelxin

Kelxin

    Neowinian

  • Joined: 08-April 04

Posted 09 October 2012 - 09:07

In the Nvidia control panel, inside the "Display" section there should be "Set up digital audio". Make sure that the HDMI port is set to the TV and neither of the two DVI ports.

#5 Soldiers33

Soldiers33

    Neowinian Senior

  • Joined: 01-September 06
  • Location: London
  • OS: Windows 7 Professional

Posted 09 October 2012 - 09:14

Ive had the same issue before. You must set the hdmi audio as default then when you disconnect it the cable it will be back to normal. I dont know why it does that. But just go to sound properties right click hdmi and set as default that should then fix it? Worked for me anyway.

#6 OP Ecion

Ecion

    Neowinian

  • Joined: 12-April 04
  • Location: United Kingdom

Posted 09 October 2012 - 10:44

Done that guys. Still no joy.

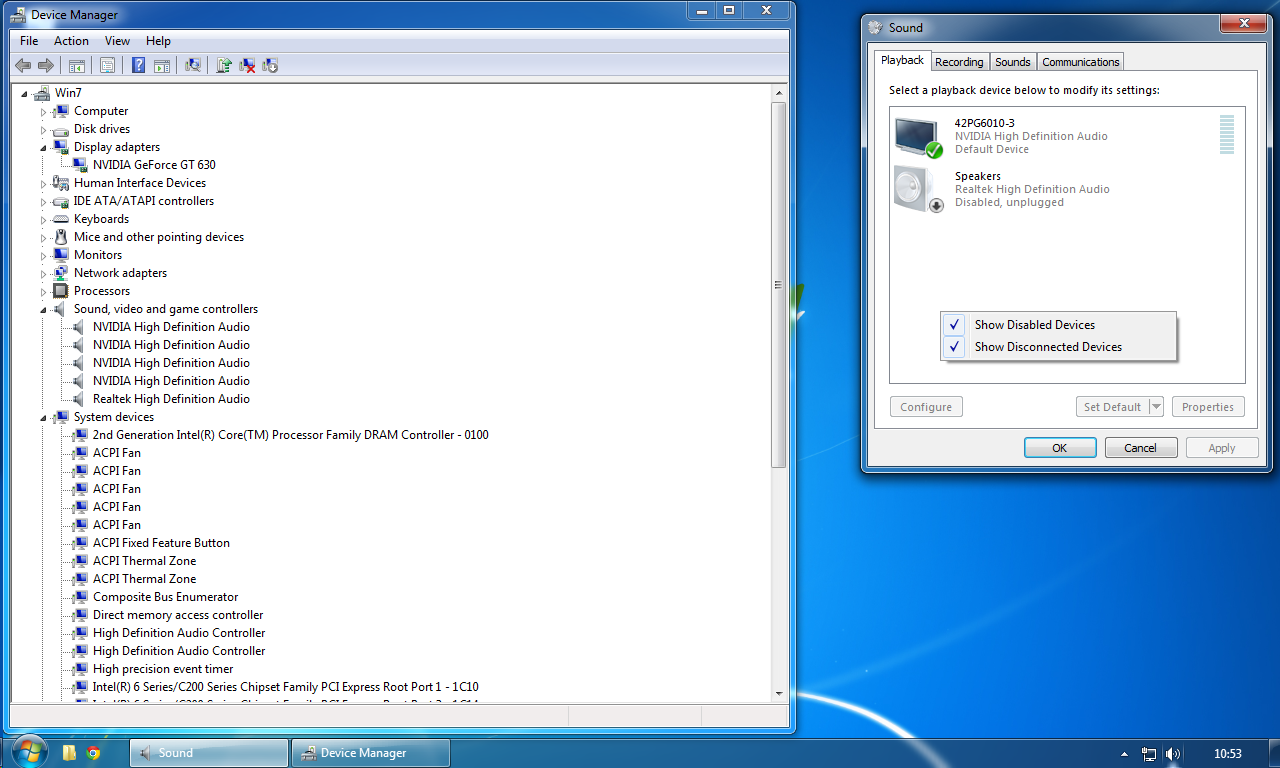

see attachment. :)

Attached Images

  • Untitled.png


#7 Soldiers33

Soldiers33

    Neowinian Senior

  • Joined: 01-September 06
  • Location: London
  • OS: Windows 7 Professional

Posted 09 October 2012 - 11:26

perhaps you must enable sound in the actual graphics card settings? check within nvidia application.

#8 Kelxin

Kelxin

    Neowinian

  • Joined: 08-April 04

Posted 09 October 2012 - 11:39

perhaps you must enable sound in the actual graphics card settings? check within nvidia application.


That's what I said above... Attaching a picture so you can see exactly what I'm talking about....

Posted Image

Also beyond that, if you double click on the sound device that you had open in your screenshot, and click on the advanced tab, try a lower setting. some TV's can't understand the super high settings such as 24 bit / 192000 Hz. 16 bit / 48000 Hz is pretty much industry standard though.

#9 OP Ecion

Ecion

    Neowinian

  • Joined: 12-April 04
  • Location: United Kingdom

Posted 09 October 2012 - 11:39

done that one too, it detects the TV under "Set up digital audio".

#10 Kelxin

Kelxin

    Neowinian

  • Joined: 08-April 04

Posted 09 October 2012 - 11:46

If you click on your sound icon in the taskbar, and click on mixer, are any of those muted?

#11 +Byté

Byté

    Neowinian

  • Joined: 27-October 06
  • Location: UK
  • OS: Win 7 & 2008r2
  • Phone: iPhone 5S

Posted 09 October 2012 - 11:57

For me to get mine working, i have to have the HDMI Cable plugged in to the TV + Graphics Card, turn my PC on when its all connected and make sure the TV in on the HDMI Channel.

If i plug the HDMI in while the PC is turned on, i get no sound. Always have to reboot.

#12 Kelxin

Kelxin

    Neowinian

  • Joined: 08-April 04

Posted 09 October 2012 - 12:00

Thinking back.... I think I had issues also, and my solution was to have a tuner between the TV and my computer (which gives me a hell of a lot better sound anyways) and passing the video through to the TV.

#13 Detection

Detection

    Detecting stuff...

  • Joined: 30-October 10
  • Location: UK
  • OS: 7 SP1 x64

Posted 09 October 2012 - 12:24

Done that guys. Still no joy.

see attachment. :)


Looking at your screenshot, it doesn't actually mention HDMI on the audio device you have selected, it looks like you might have the boards digital out selected and not the cards HDMI

See mine:
Posted Image



Could be you need to install the cards driver again to get the audio working / enable something in the cards settings

EDIT - Just noticed that the name of the device you have selected for Audio is the TV Model number, is it possible that the machine thinks the TV is the sound card rather than the speakers? If you look at mine, it shows that the sound device is the AMD Card, it doesnt mention my TV that is connected to it

#14 OP Ecion

Ecion

    Neowinian

  • Joined: 12-April 04
  • Location: United Kingdom

Posted 09 October 2012 - 12:58

I'm not sure where it got the name from, but its configurable anyway so don't think thats related. I've currently renamed it to HDMI anyway.
I've also asked the question to Palit (brand of nvidia card) and they've sent step by step pictures detailing the same setup as mine, so I think the way devices are listed etc is okay.

I've tried many reboots, and in certain orders to no avail. Also updated the mobo bios just in case, but again no joy.

One thing I have noticed though, is that the TV's hdmi channel is dimmed as if its not available - even though selecting brings up the picture. Its almost as if the TV has told the PC it can do sound, but the PC isnt telling the TV know sound is coming down the cable. The HDMI channel icon lights up again when using another machine (laptop, xbox, etc).

#15 Detection

Detection

    Detecting stuff...

  • Joined: 30-October 10
  • Location: UK
  • OS: 7 SP1 x64

Posted 09 October 2012 - 13:00

I'm not sure where it got the name from, but its configurable anyway so don't think thats related. I've currently renamed it to HDMI anyway.
I've also asked the question to Palit (brand of nvidia card) and they've sent step by step pictures detailing the same setup as mine, so I think the way devices are listed etc is okay.

I've tried many reboots, and in certain orders to no avail. Also updated the mobo bios just in case, but again no joy.

One thing I have noticed though, is that the TV's hdmi channel is dimmed as if its not available - even though selecting brings up the picture. Its almost as if the TV has told the PC it can do sound, but the PC isnt telling the TV know sound is coming down the cable. The HDMI channel icon lights up again when using another machine (laptop, xbox, etc).


I had a quick look through the thread here but didn't notice if you had tried a different HDMI cable or not ?

EDIT - I see you tested that cable with another machine, still wouldn't hurt to try a new cable with this machine
