use-cases: Control DC and Stepper Motors with L298N or with DAYPOWER Motor-9110 - different use-scenarios  -

Recommended Posts

tarifa    0



hello dear experts hello dear Neowin community.




use-cases: Control DC and Stepper Motors with L298N or with DAYPOWER Motor-9110 - different use-scenarios  -  some one have example how to use l298n with motors.


Friends of me use it with  a raspi based  -Control DC and Stepper Motors With L298N Dual Motor Controller Modules and Raspi.  And now i need to use it - First of all i have to explain the use-case: whether i want to



- controlling steppers or
- DC motors as both are different code.



Second - i have to look after the specs of the motors i want to control(voltage/amperage)
considering the L298n: One of the advantage of the L298n; it has a very big forward voltage of 2.8v so is incredibly inefficient that's why they come with such a big heat sink. The only advantage is the the L298n will run at voltages as high as 48v at current as high as 4amp



But wait - for all small robotics I tend to use a smaller motor-driver than the L298n; Note the N298n it is a bit outdated. For small robotic-projects we also can use for example the l9110s as it forward voltage is very low - 0.7v so it is a really very efficient H-bridge motor-driver: but according the specs, it is only rated to 12v at peak current of 1.5amp. That is quite very good - isn+t it!?

What i do need is some example code of l9110s and example of connecting the wires. What is wanted: well i need to take a car forward and back.
But first of all it is important to find out which motor i can use with the l 9110?  so i have  to make up my mind to decide what type and size of motors i should be using.



i thought of using:

- driving stepper motors or
- DC motors and

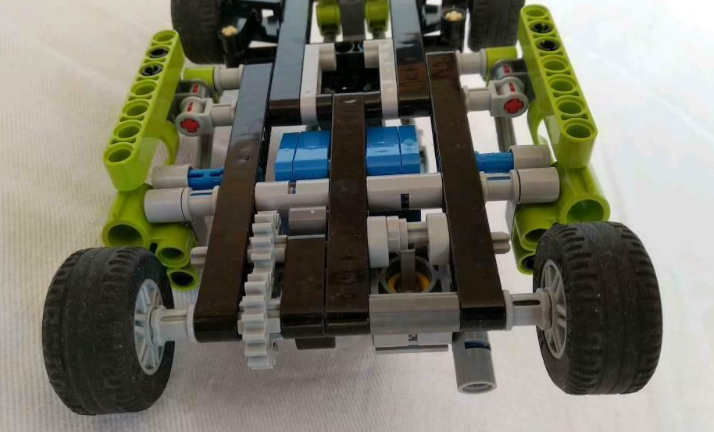

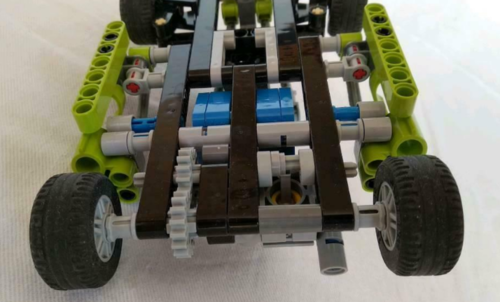

see below some images of the LEGO - cars i want to use



besides that - what are the voltage and amperage of the motors for me to know if a L9110 is suitable for the motors. Here is the datasheet https://www.elecrow.com/download/datasheet-l9110.pdf Wiring the L9110: it is dual H-bridge so can drive 2 DC motors. each motor will need 2 input pins from the micro-controller. see the project i have in mind:  see the lego-things i am workin on - at the moment









which motor do you think i have to use - in combination with the L9110 ?
love to hear from you

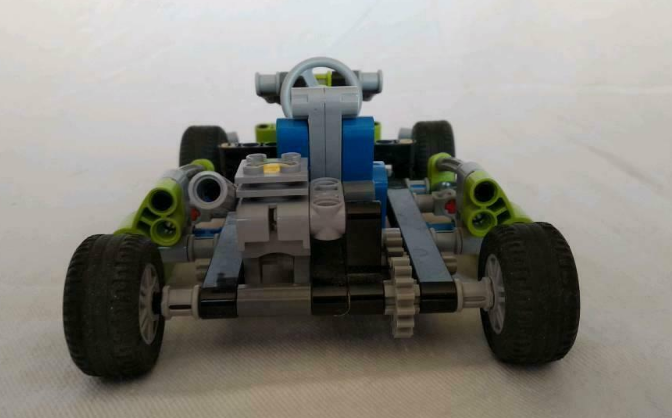

see below some images of the LEGO - cars i want to use
