Strange Partition Setup


Recommended Posts

Richard C.

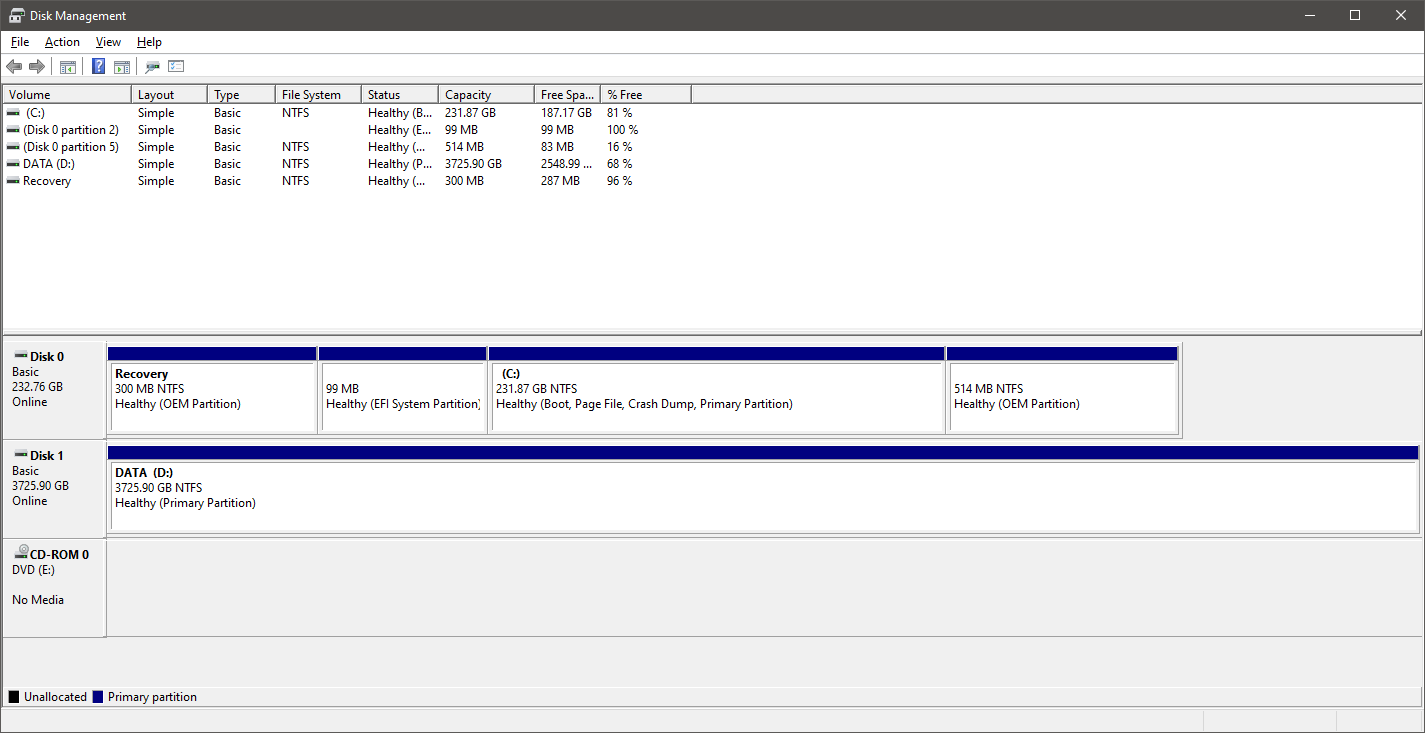

Since I did a clean install of Windows 10 Pro I've noticed a strange partition setup, is this normal, I've never seen this many partitions on any empty drive before.



When I did previous installs, and image based installs I've not seen (or looked for) this number of partitions.



This is the first time I've used secure boot on a pc I built myself so maybe this is related?






Link to post
Share on other sites
ZakO

That's a normal partition config when installing windows 10 onto a GPT drive.



Recovery -> Recovery tools

EFI -> Boot files

C -> Main drive

MSR -> MS Reserved Space - I think this is sometimes used for in-place upgrades

Link to post
Share on other sites
Xahid

There is nothing strange about it.
its normal.

Link to post
Share on other sites
George P

Like others have said, that's normal.  My C drive is the old MBR style so I have everything but the EFI partition.

Link to post
Share on other sites
