F9 : Es'hail 2

Recommended Posts

Draggendrop    5,634
Quote

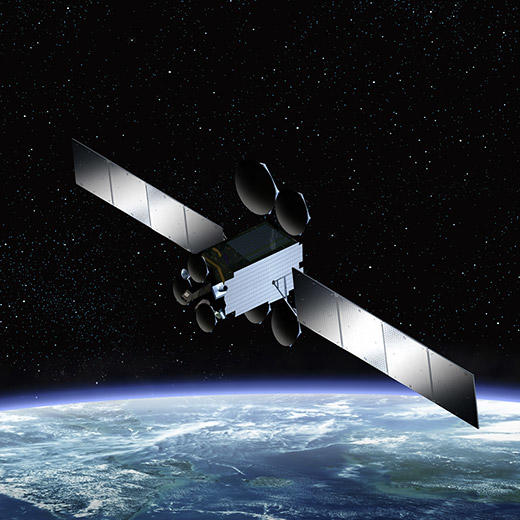

Es’hail-2 is a new communication satellite originally scheduled to be placed into the geostationary transfer orbit in the fourth quarter of 2016, but delayed to 2018. It will be launched aboard the Falcon-9 launch vehicle from Cape Canaveral Air Force Station, Florida, US.



The satellite will be positioned at 26° east orbital position and will provide TV broadcasting and direct-to-home (DTH) services across the Middle East and North Africa. It will be the first Amateur Radio communication satellite in Qatar.



Owned and operated by Es’hailSat, Es’hail-2 will become Qatar’s second communications satellite, following the launch of the Es’hail-1 in August 2013.



Es’hailSat plans for more new satellites in prime hotspot locations.

https://www.aerospace-technology.com/projects/eshail-2-communication-satellite/






---------------------------



Quote

SpaceX Falcon 9 launch with Es’hail-2 has turned up on the Eastern Range as NET November 14. This launch will take place from 39A. Cool photo from Nathan Barker (@NASA_Nerd) from this week below:

Range shows this is an ASDS landing for the booster.

As always, subject to change.

https://twitter.com/NASASpaceflight/status/1052620988393840641



--------------------------------



Eshailsat homepage

https://www.eshailsat.qa/en/satellites





Quote

Nation:    Qatar
Type / Application:    Communication, amateur communication
Operator:    Es'hailsat, AMSAT
Contractors:    Mitsubishi Electric (MELCO)
Equipment:    Ku- and Ka-band transponders, AMSAT payload
Configuration:    DS-2000
Propulsion:    ?
Power:    2 deployable solar arrays, batteries
Lifetime:    15 years
Mass:    ~3000 kg
Orbit:    GEO

https://space.skyrocket.de/doc_sdat/eshail-2.htm



  • Like 2

Share this post


Link to post
Share on other sites
Draggendrop    5,634

We have a tentative window...



Quote

Nov. 14    Falcon 9 • Es’hail 2


Launch window: 2046-2227 GMT (3:46-5:27 p.m. EST)


Launch site: Cape Canaveral, Florida


A SpaceX Falcon 9 rocket will launch the Es’hail 2 communications satellite. Built by Mitsubishi Electric Corp. and owned by Qatar’s national satellite communications company Es’hailSat, Es’hail 2 will provide television broadcasts, broadband connectivity and government services to Qatar and neighboring parts of the Middle East, North Africa and Europe. Es’hail 2 also carries the first amateur radio payload to fly in geostationary orbit. Delayed from August. [Oct. 18]

https://spaceflightnow.com/launch-schedule/

Share this post


Link to post
Share on other sites
Draggendrop    5,634
Quote

Satellite Name: Es'hail 2

Position: 25° E (25.5° E)

Operator: Es'hailSat
Launch date: 14-Nov-2018 (Estimated)
Launch site: Cape Canaveral
Launch vehicle: Falcon 9 v1.2
Launch mass (kg): 3000

Manufacturer: Mitsubishi Electric Corp. (MELCO)
Model (bus): DS2000
Orbit: GEO
Expected lifetime: 15+ yrs.


Details:

24 Ku-band and 11-Ka-band transponders to provide direct broadcasting services throughout the Middle East and North Africa as well as government communication services. Moreover, Es’hail 2 will provide the world’s first geostationary amateur radio service in S-band/X-band ranges via its AMSAT hosted payload.

https://www.satbeams.com/satellites?id=2683



Still on track...



Nov. 14  Falcon 9 • Es’hail 2

Launch window: 2046-2227 GMT (3:46-5:27 p.m. EST)
Launch site: Cape Canaveral, Florida  39A

Share this post


Link to post
Share on other sites
Draggendrop    5,634

For reference...



Launch announced for Es'hail-2 carrying ham radio transponders



Quote

Es’hail-2 will carry two “Phase 4” amateur radio transponders operating in the 2400 MHz and 10450 MHz bands. A 250 kHz bandwidth linear transponder intended for conventional analogue operations and an 8 MHz bandwidth transponder for experimental digital modulation schemes and DVB amateur television.

http://www.southgatearc.org/news/2018/august/launch-announced-for-es'hail-2-carrying-ham-radio-transponders.htm





PDF of 36 slides of info on the amateur radio transponders...

https://www.amsat.org/wordpress/wp-content/uploads/2018/02/2017Symposium-Peter_Gulzow-DB2OS.pdf



Quote

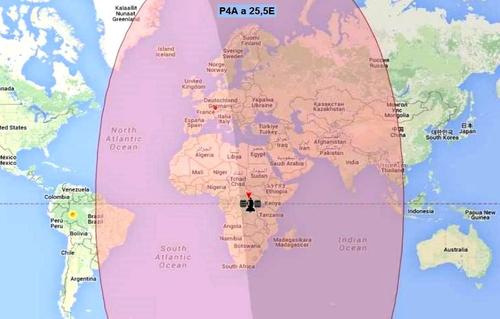

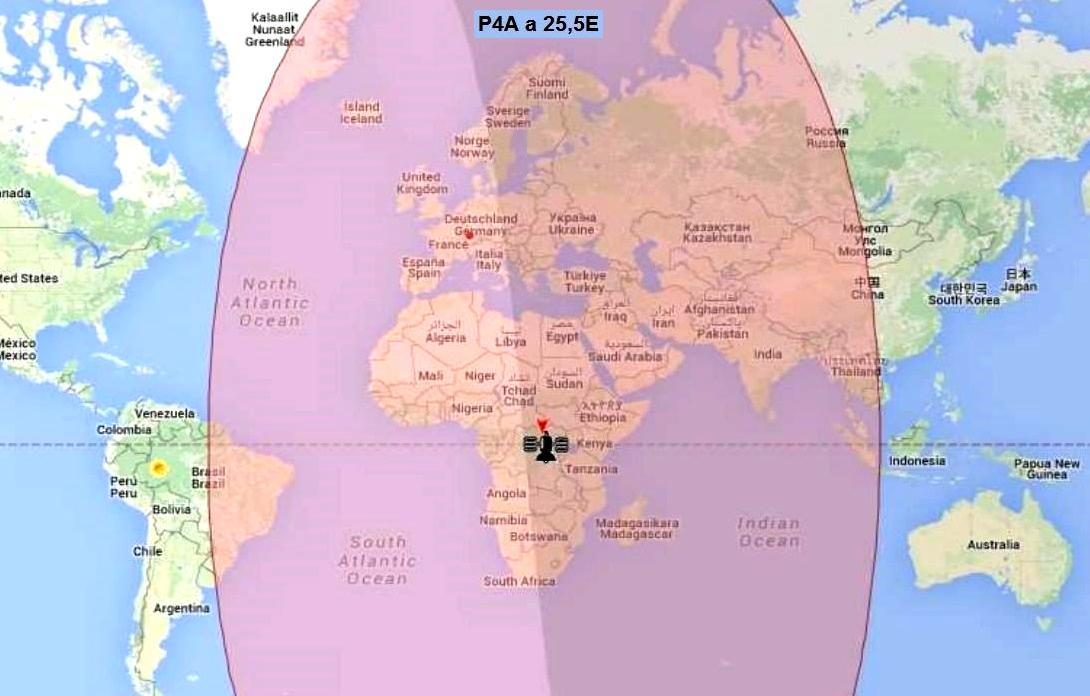

Qatar’s Es’hail-2 satellite will provide the first amateur radio geostationary communications that could link amateurs from Brazil to Thailand.



The satellite is expected to be positioned at 25.5 degrees East. A launch is planned for the 4th quarter of 2018.



Es’hail-2 will carry two “Phase 4” amateur radio transponders operating in the 2400 MHz and 10450 MHz bands. A 250 kHz bandwidth linear transponder intended for conventional analogue operations and an 8 MHz bandwidth transponder for experimental digital modulation schemes and DVB amateur television.

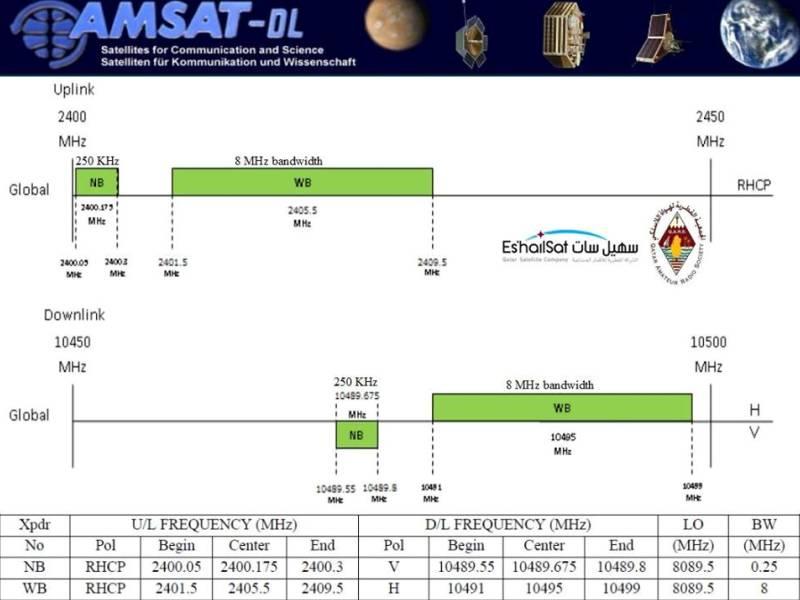

Narrowband Linear transponder 2400.050 - 2400.300 MHz Uplink 10489.550 - 10489.800 MHz Downlink Wideband digital transponder 2401.500 - 2409.500 MHz Uplink 10491.000 - 10499.000 MHz Downlink

Quote

Equipment requirements:



Es’Hail-2 Geostationary P4-A Transponder Frequencies

X-Band 10 GHz Downlink:
– 89 cm dishes in rainy areas at EOC like Brazil or Thailand
– 60 cm around coverage peak
– 75 cm dishes at peak -2dB
– NB: linear vertical polarisation
– WB: linear horizontal polarisation



S-Band 2.4 GHz NB-Uplink:
– narrow band modes like SSB, CW
– 5W nominal Uplink power (22.5 dBi antenna gain, 75cm dish)
– RHCP polarisation

S-Band 2.4 GHz WB-Uplink (DATV):
– wide band modes, DVB-S2
– peak EIRP of 53 dBW (2.4m dish and 100W) required
– RHCP polarisation













https://amsat-uk.org/satellites/geosynchronous/eshail-2/



https://amsat-dl.org/p4-a-wb-transponder-bandplan-and-operating-guidelines



https://amsat-dl.org/p4-a-nb-transponder-bandplan-and-operating-guidelines



Amsat presentation for amateur payload...16 page pdf of slides...

https://www.itu.int/en/ITU-R/space/workshops/2015-prague-small-sat/Presentations/Eshail-2.pdf

  • Like 1

Share this post


Link to post
Share on other sites
Draggendrop    5,634

This launch...may...have moved a day right, to the 15th...waiting for confirmation...Static fire should be due around the 11th anyway...



Spaceflight Now schedule still showing 14th, an NSF communication copy from a customer implies the 15th for launch.



That's not official in my books, though it may well be true...SpaceX will tweet the SF and launch window.

Share this post


Link to post
Share on other sites
Draggendrop    5,634
Quote

With the usual caveat of subject to change, Falcon 9 is set to return to KSC's 39A on November 11 for a Static Fire test ahead of the November 15 launch (window 1546 - 1729 local) of ES’HAIL-2. The booster will an ocean landing - returning to OCISLY.

https://twitter.com/NASASpaceflight/status/1060551990332284928








Static fire on the 11th and off we go on the 15th from 39A.

  • Like 1

Share this post


Link to post
Share on other sites
DocM    15,398

SpaceX press release



Falcon 9 is now certified for NASA high-value  missions - Category 3.



Next threshold: nuclear powered missions.



Quote

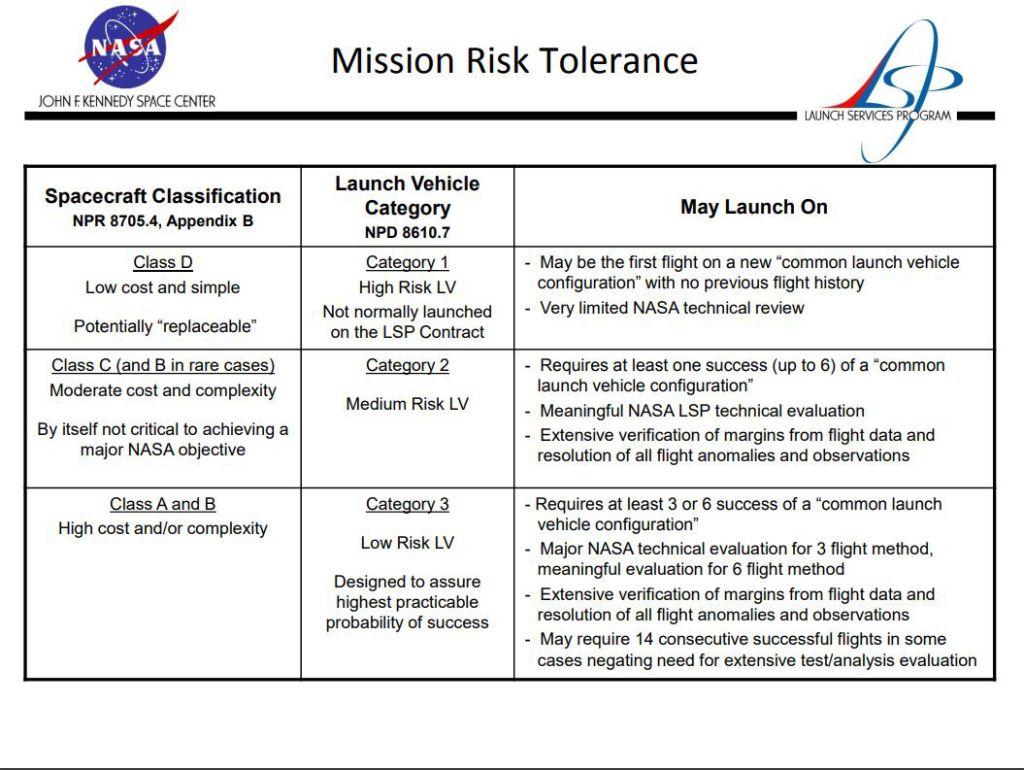

NASA’s Launch Services Program (LSP) has certified Falcon 9 as a Category 3 launch vehicle. Category 3 launch vehicles are certified to support NASA’s highest cost and most complex scientific missions. The following statement is from SpaceX President and Chief Operating Officer Gwynne Shotwell:

“LSP Category 3 certification is a major achievement for the Falcon 9 team and represents another key milestone in our close partnership with NASA. We are honored to have the opportunity to provide cost-effective and reliable launch services to the country’s most critical scientific payloads."

The process of designating launch vehicles as Category 3 is designed to assure the highest practicable probability of success. Falcon 9 has completed over 60 missions, including the NASA LSP missions Jason-3 and TESS.




  • Like 1

Share this post


Link to post
Share on other sites
Draggendrop    5,634
Quote

A Falcon 9 rocket is rolling out to pad 39A as #SpaceX prepares for an engine test firing ahead of a launch later this week. https://spaceflightnow.com



https://twitter.com/SpaceflightNow/status/1061670821368946689



-------------------------



Quote

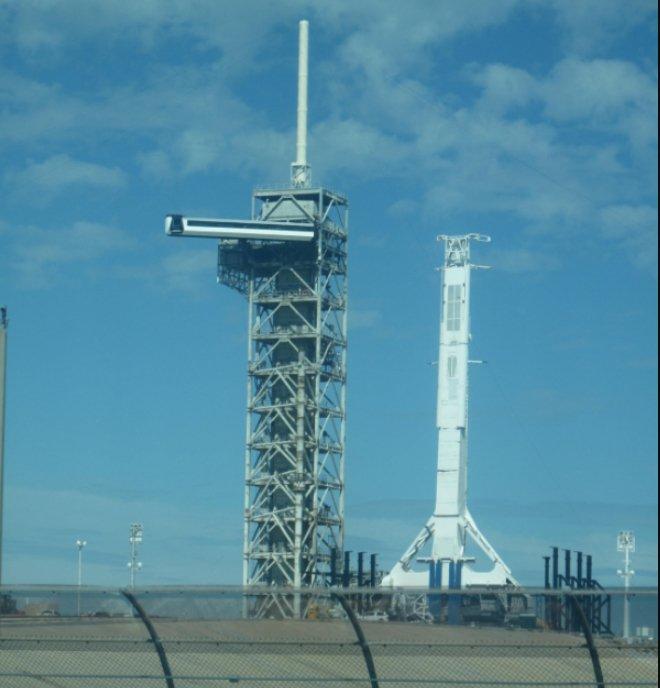

The @SpaceX Falcon 9 is on the Pad 39A ramp rolling to go vertical later today for a static test fire.



https://twitter.com/WordsmithFL/status/1061675411044732928



Share this post


Link to post
Share on other sites
DocM    15,398



  • Like 1

Share this post


Link to post
Share on other sites
Draggendrop    5,634
Quote

SpaceX has rolled out a Falcon 9 rocket to pad 39A at NASA’s Kennedy Space Center in Florida for a test-firing as soon as Monday, setting the stage for a launch Thursday with a commercial communications satellite. https://spaceflightnow.com/2018/11/12/live-coverage-falcon-9-rocket-to-be-test-fired-at-kennedy-space-center/ …




https://twitter.com/SpaceflightNow/status/1061798395155832832



Monday it is....be nice to get back launching...with a volley over the next 2 months...😀

  • Like 1

Share this post


Link to post
Share on other sites
Draggendrop    5,634
Quote

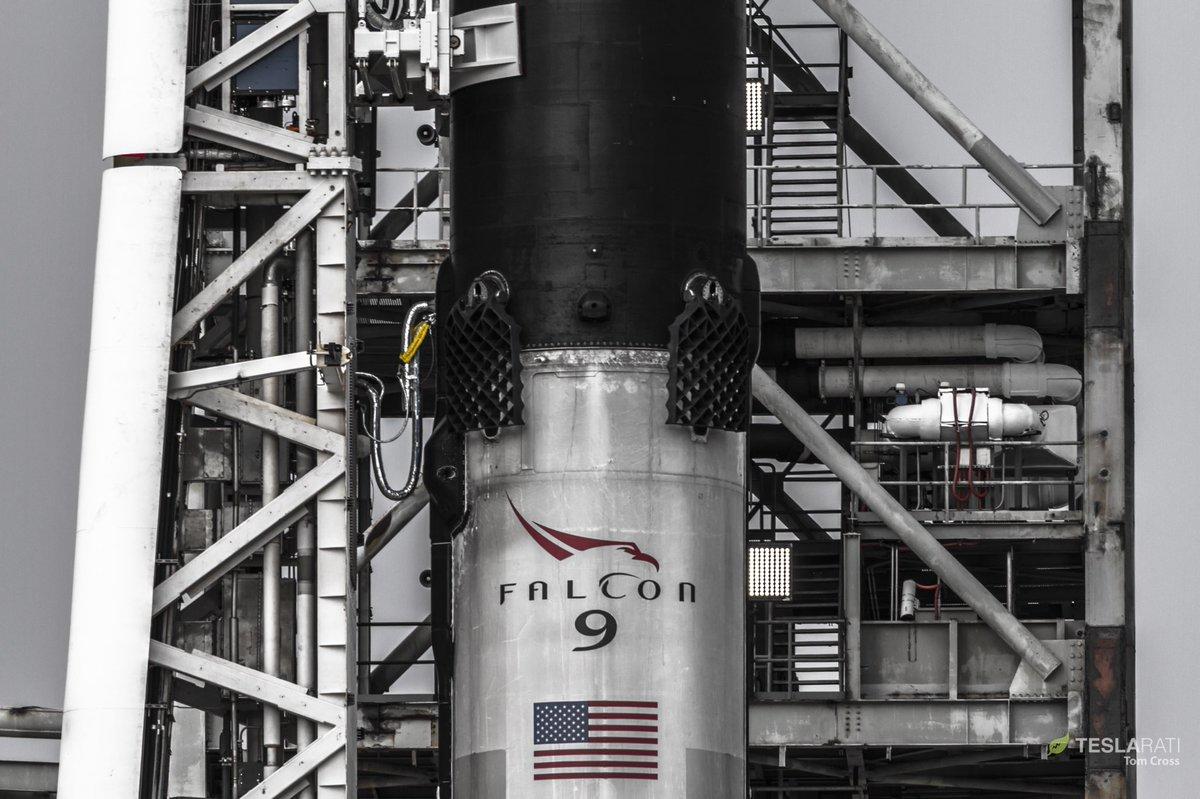

This is the view @ExploreSpaceKSC of Falcon 9 awaiting static fire testing. This is a pre-flown Block 5 which launched Telstar 19V in July. This is the 18th SpaceX mission this year. Yes, 11months, 18 missions . They’ll be landing this booster (again) on OCISLY. @Teslarati



https://twitter.com/_TomCross_/status/1061711443295436800






https://pbs.twimg.com/media/Drv060yXQAEZ9LW.jpg





Share this post


Link to post
Share on other sites
Draggendrop    5,634
Quote

Static fire test of Falcon 9 complete—targeting November 15 launch of Es’hail-2 from Pad 39A in Florida.

https://twitter.com/SpaceX/status/1062166579306102784





Quote

F9/Es’hail2: Here’s a shot of the Falcon 9 hot fire test this evening (pardon the humidity!):






https://twitter.com/cbs_spacenews/status/1062161803965276160



Share this post


Link to post
Share on other sites
Draggendrop    5,634

SpaceX - Es'hail2 - Static Fire Test 11-12-2018



"Tried at 9AM, rained all day, successful 6+ second burn at 6:30 PM. Pad 39A, B1047. We are a US disabled veteran run, non-profit video production company whose mission is to bring other disabled US Veterans to witness a launch, experience US Space History and become part of our report."





video is 1:54 min, SF around 1:12 min



-----------------------------------











Patch should be out any time...

  • Like 1

Share this post


Link to post
Share on other sites
DocM    15,398

Launch date: Nov 15, 1546-1729 EST  (2046-2229 UTC)



Weather: 60%



Backup date: Nov 16, 1548-1729  EST (2048-2229 UTC)



Weather: 90%








  • Like 2

Share this post


Link to post
Share on other sites
Draggendrop    5,634

From earlier today...



Quote

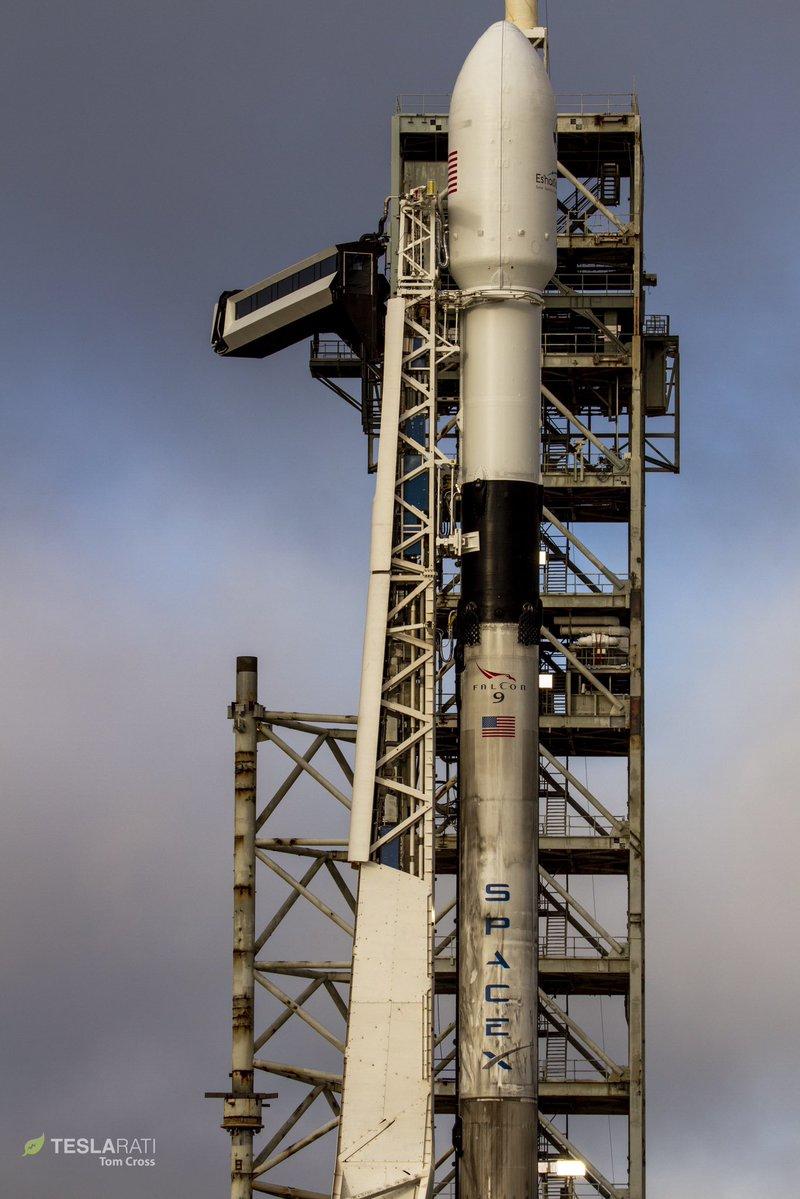

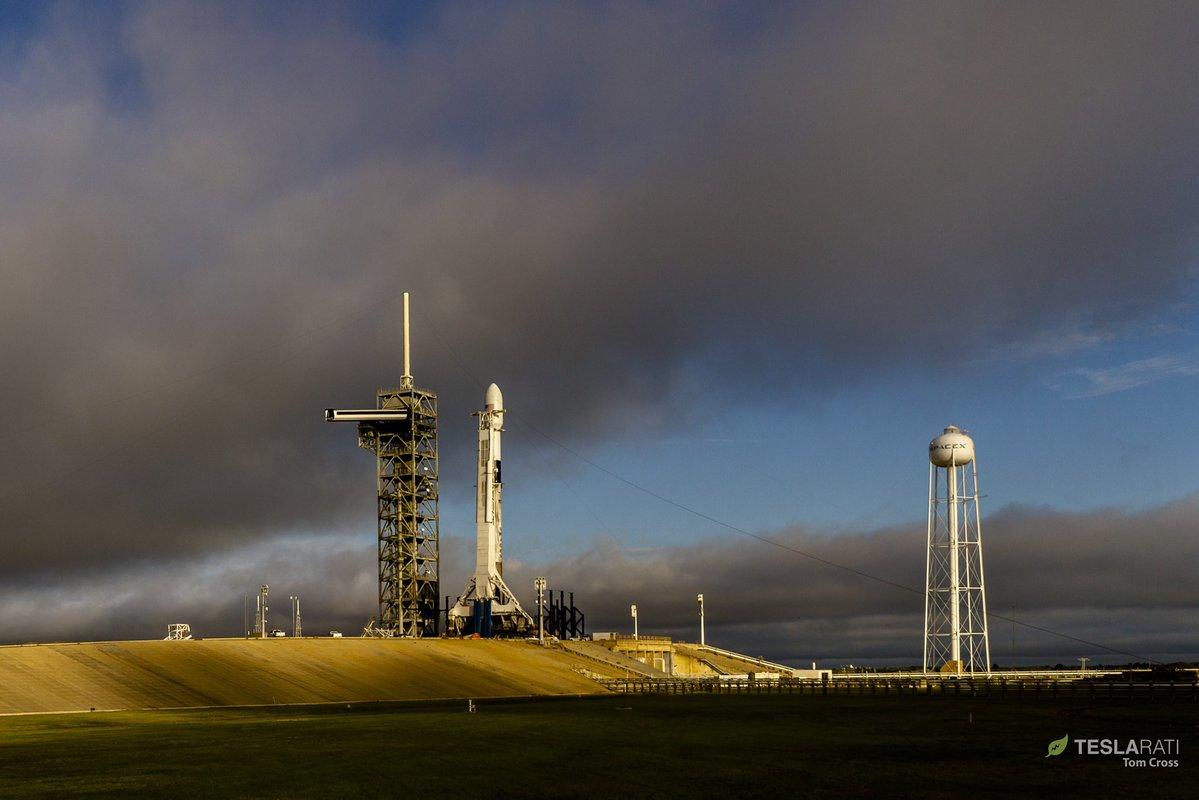

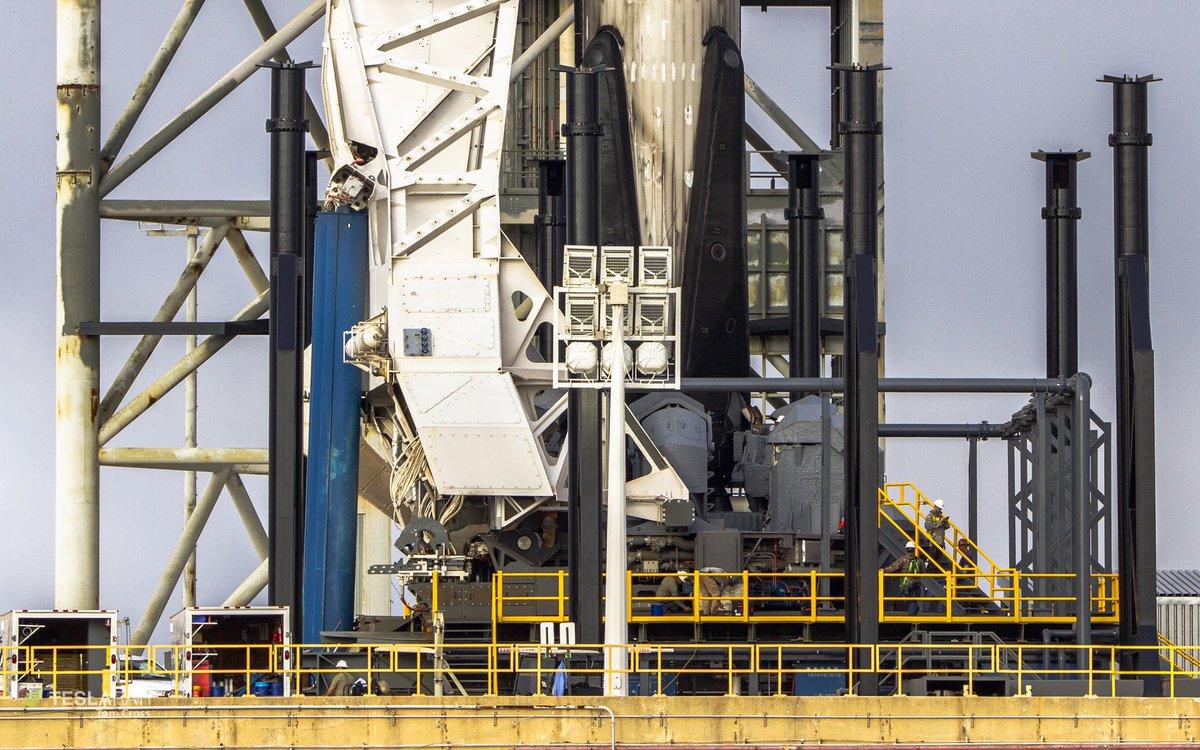

Moody weather this morning made for beautiful lighting on Falcon 9 @NASAKennedy. @spacex has started aesthetic treatment on the launch pad also. Launch at 3:46pm ET. @Teslarati #SpaceX #Eshail2

https://twitter.com/_TomCross_/status/1063138038098870273





















----------------------------------



Quote

We are proud

https://twitter.com/eshailsat/status/1063114843077566464




Share this post


Link to post
Share on other sites
Draggendrop    5,634

Funky music...









Share this post


Link to post
Share on other sites
Draggendrop    5,634

Webcast has started...



sea state for ASDS appears reasonable







Share this post


Link to post
Share on other sites
Unobscured Vision    2,584

Cloudy ... hmm.

Hey, a new guy!

  • Like 1

Share this post


Link to post
Share on other sites
Draggendrop    5,634
4 minutes ago, Unobscured Vision said:

Cloudy ... hmm.

Hey, a new guy!

He'll have to pass our test...seems OK so far.😎





  • Like 1

Share this post


Link to post
Share on other sites
Unobscured Vision    2,584

Yep, clean dialogue so far. :yes:

  • Like 1

Share this post


Link to post
Share on other sites
Draggendrop    5,634









  • Like 2

Share this post


Link to post
Share on other sites
DocM    15,398

Liftoff!!

Share this post


Link to post
Share on other sites
Draggendrop    5,634

liftoff







Share this post


Link to post
Share on other sites
DocM    15,398



MaxQ

Share this post


Link to post
