Intel Processors Overclock Database


Recommended Posts

I hope to see your overclocking results in this database soon :)

Should be a good system, you seem to have given it a lot of thought.

Link to comment
Share on other sites

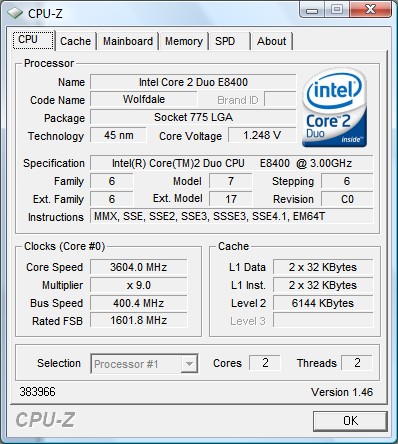

Processor: Intel C2D E8400 @ 3.6 GHz 400x9

Stepping: C0

Vcore: 1.248

Method of cooling and make and model of cooler: Air - stock Intel cooler for Pentium D & Arctic Silver 5

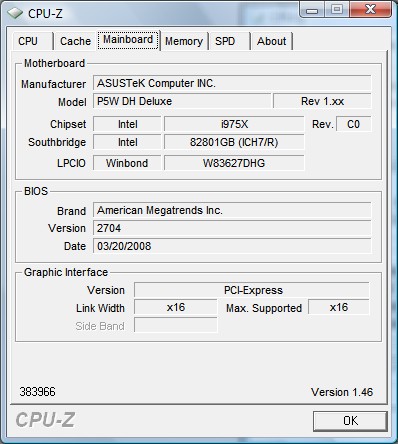

Make and model of motherboard with BIOS version: ASUS P5W DH Deluxe Bios 2704

OS version: Windows Vista Ultimate x64

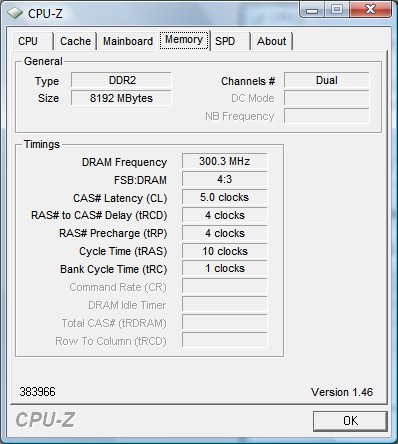

RAM brand, model number, frequency, and latencies: G.Skill, F2-6400CL5-2GBPQ, 600MHz 5-4-4-10




Link to comment
Share on other sites

Nope, everything's in order. If you have the week and code that would be cool, but nothing otherwise.

I don't. I chucked my box after I got this hog running.

Are you planning to add my specs to the database? :whistle:

Link to comment
Share on other sites

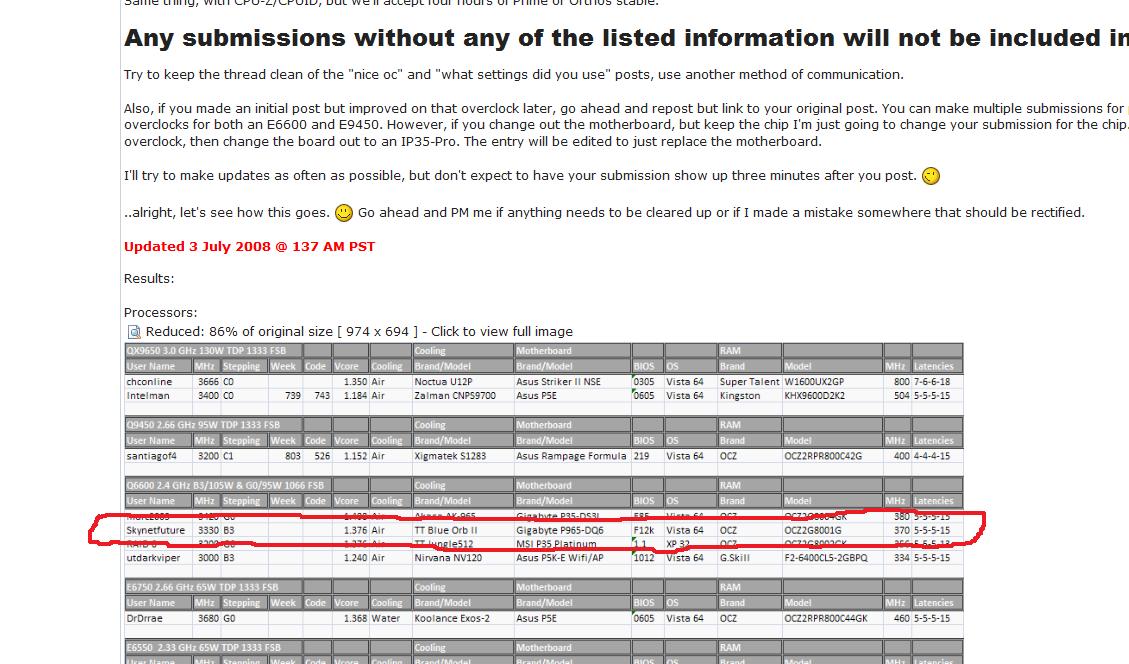

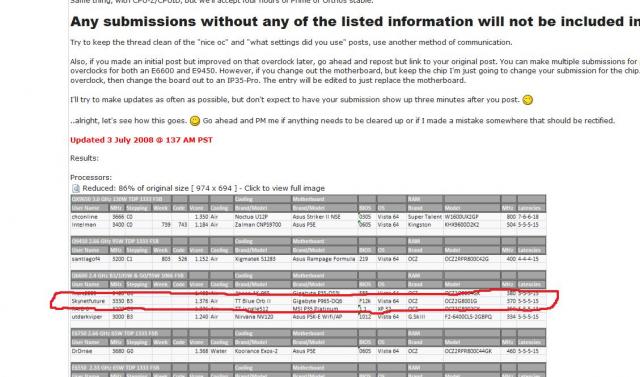

Look at the FIRST chart. We don't really know what we're going to do with the second one yet...

Link to comment
Share on other sites

You aren't. You're under Q6600. Look at he chart on the top, not on the bottom. Like I said, we don't know what we're going to do about the one on the bottom just yet.

Link to comment
Share on other sites

You aren't. You're under Q6600. Look at he chart on the top, not on the bottom. Like I said, we don't know what we're going to do about the one on the bottom just yet.

it is not :no: . i dont mean to be offensive ....... and yes i have looked at the upper one :wacko: :dizzy:

there are only marc2003 , utviper , raid0

it is not big deal or somethn but commn

Link to comment
Share on other sites

@Skynetfuture

isn't that you?

lol yea :blush:

actually it look i some who blocked that my raw in the database with Adblock plus by accdent yesterday when i was zzzzz tired :shiftyninja:

i have figured it out by disabling Ad block for this page

hehe forget what i said before guys , thanks :whistle:

Link to comment
Share on other sites

Intel Core 2 Duo E4500 @ 3 GHz

D Stepping

1.424 V-Core (idle w/ CPU-Z)

Stock Intel Box Cooler (Air)

Gigabyte P35-DS3L Rev. 2.0 With F8F Bios

Windows Vista Business x64

(2) Kingston KVR667D2K2/2GR 2GB kits (4GB of RAM total)

RAM is 667MHz (PC2 5300) RAM (at stock speed)

I have them running at 5-5-5-15 at 819MHz




Memtest 86+ Proof:


Link to comment
Share on other sites

No, I ran memtest as my stability test for RAM. In the screenshot above, I ran orthos for 9 and a half hours to stress the CPU.

Link to comment
Share on other sites

Holy crap, either I completely missed those...or you did a little ninja edit after I posted. Okay I'll add you in a few minutes.

edit: I'm looking at what we have now...uhhh...what's different?

Link to comment
Share on other sites

LOL I can't see the difference either.....:|

I think he was just indicating that his overclock is 9 hours ORTHOS stable.

Link to comment
Share on other sites

Nah, all we need is your RAM brand / model #

4GB vs 2GB of RAM doesn't really make a difference in overclocking compared to the speed, voltages and timing that it's running at.

Link to comment
Share on other sites

Sounds good. Hey, I got a new CPU cooler (the Xigmatek HDT-S963), so you can add that to the database. As you can see, the temps are a lot cooler now compared to the 70 degrees celsius the were getting with the stock cooler:

(In case you can't see, it says 56 degrees on one and 57 degrees on the other.


Link to comment
Share on other sites

Are you going to try and push your processor to a higher overclock? It would be easier if I just made one update compared to updating for your cooler, and then updating again for your overclock :p

Link to comment
Share on other sites

I don't think I'm gonna try to go higher simply because I had to bump the voltage like .15 volts just to get the extra 100 MHz from 2.9GHz to 3GHz, so it just doesn't seem worth it.

Link to comment
Share on other sites
