Post Your Case Mods


Recommended Posts

Liandros

Cooler Master ATC-210C AX1 Aluminum Case Window:

Before:

http://www.modthebox.com/reviews/coolermas...b/atc210b17.jpg

After:

http://www.odium1.com/case-mod.jpg

I used a 3” hole saw, c-strip rubber fan molding, skull and cross bones laser cut fan grill w/ net guard, vantec 80mm blue/green spectrum uv led fan.

My first custom built computer, my first pc mod, many more to come.

Please comment, I would like to know what you think.

Thank you

i would love to have one of those cases but they do not make them anymore and are hard to find so i am settling with this case which i am going to get soon,

http://www.newegg.com/Product/Product.asp?...N82E16811119035

Link to post
Share on other sites
skapunk8301

I think I can top yours skapunk8301!

check it out!

:woot: NICE! heh.. That's some impressive work there, bud! I especially like the scotch tape effect!

Link to post
Share on other sites
  • 2 weeks later...
The Right Guy

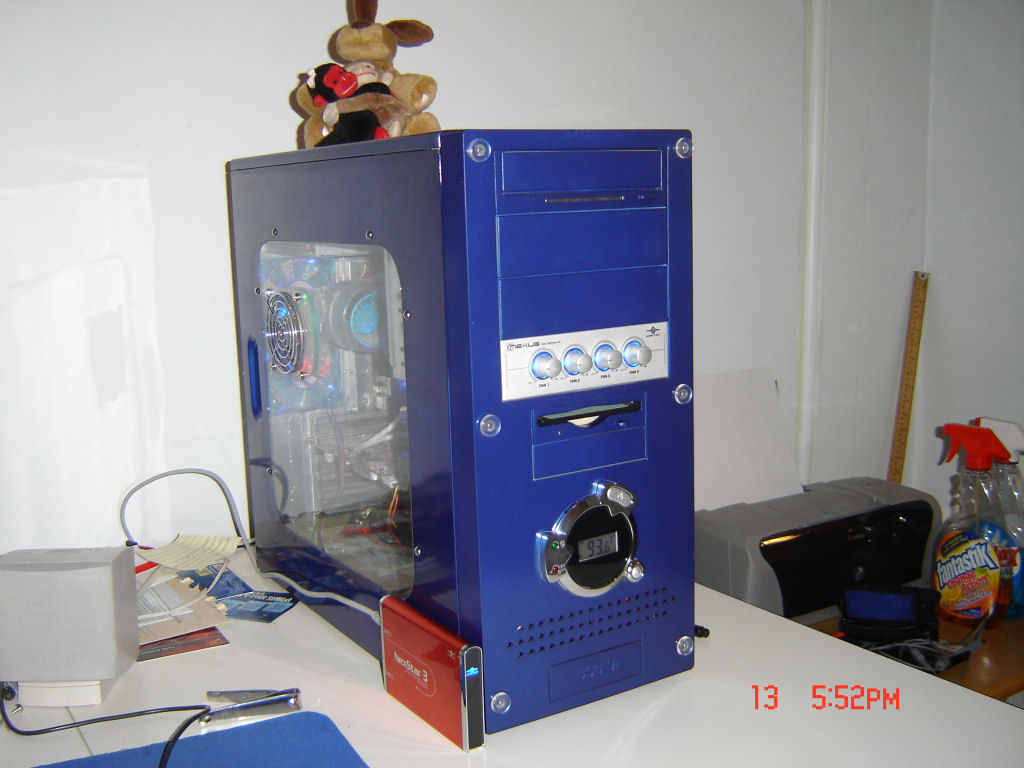

this is mine :p


I removed the plexiglass and the lights in the front because i didnt like it :p

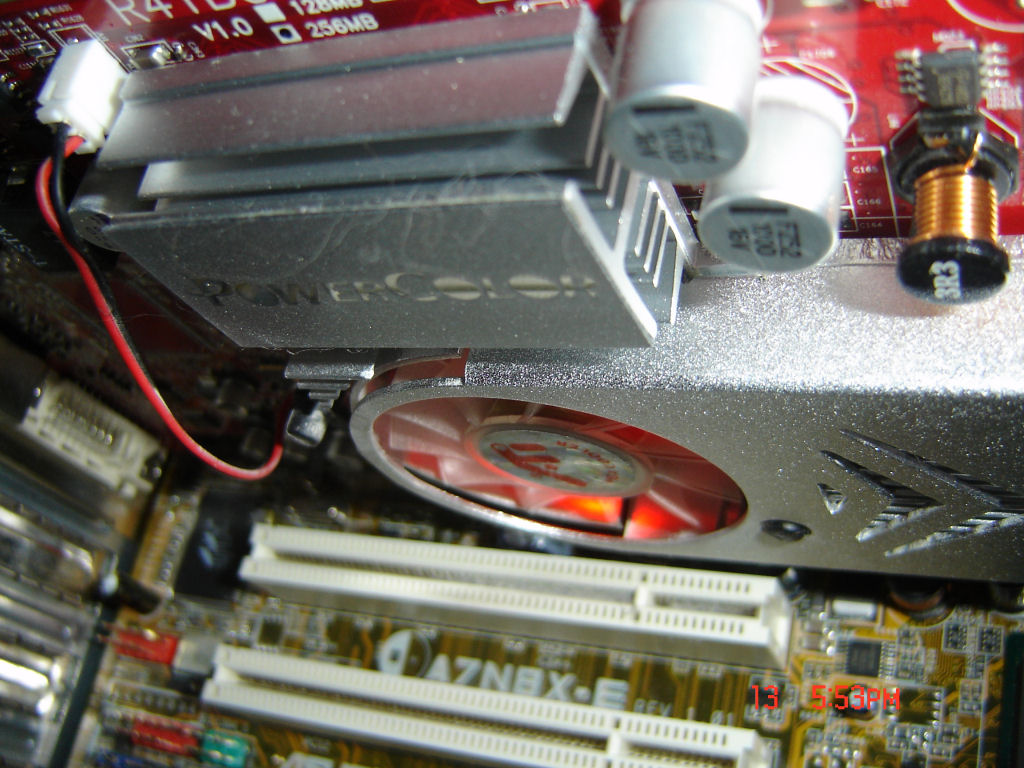

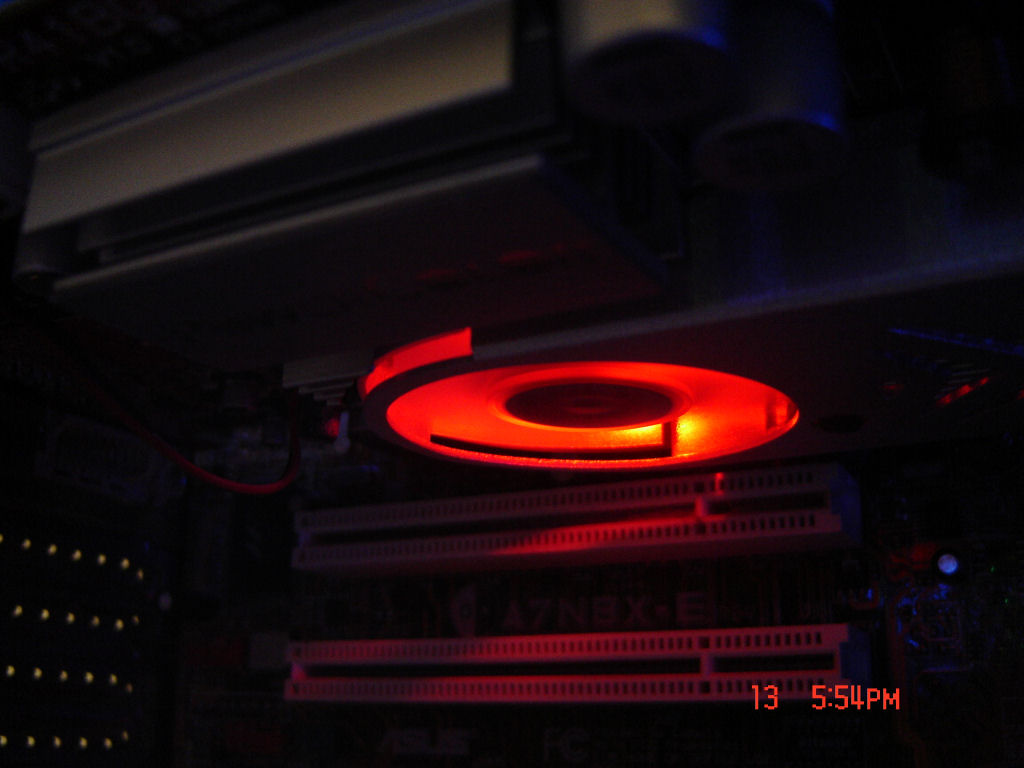

The Red led in my videocard fan came with the card

Link to post
Share on other sites
Badtz-Maru

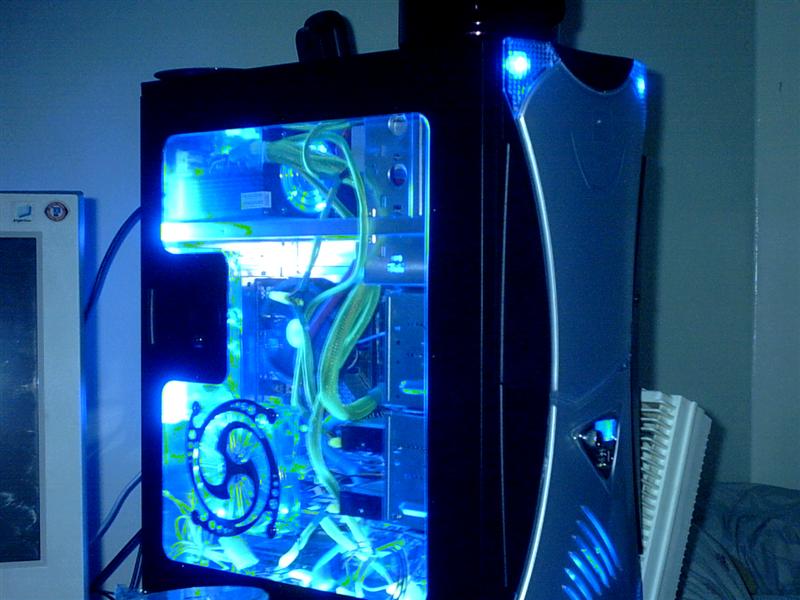

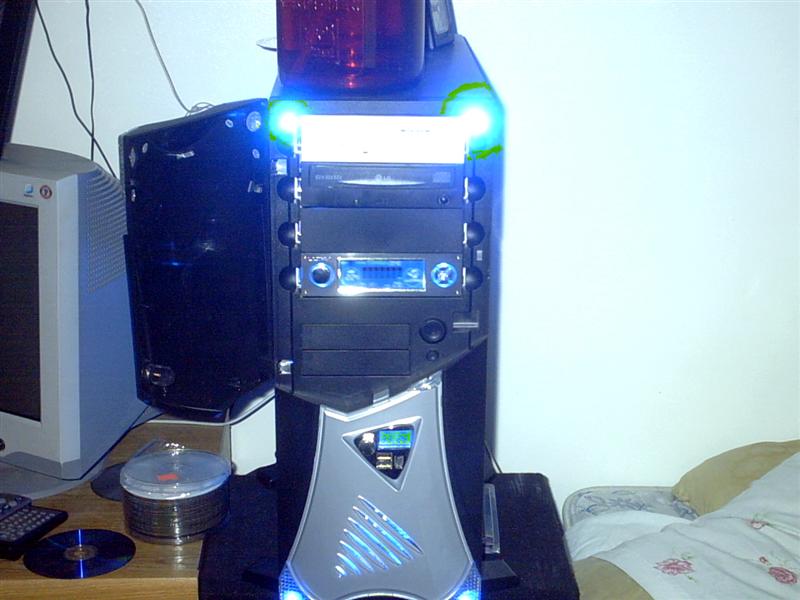

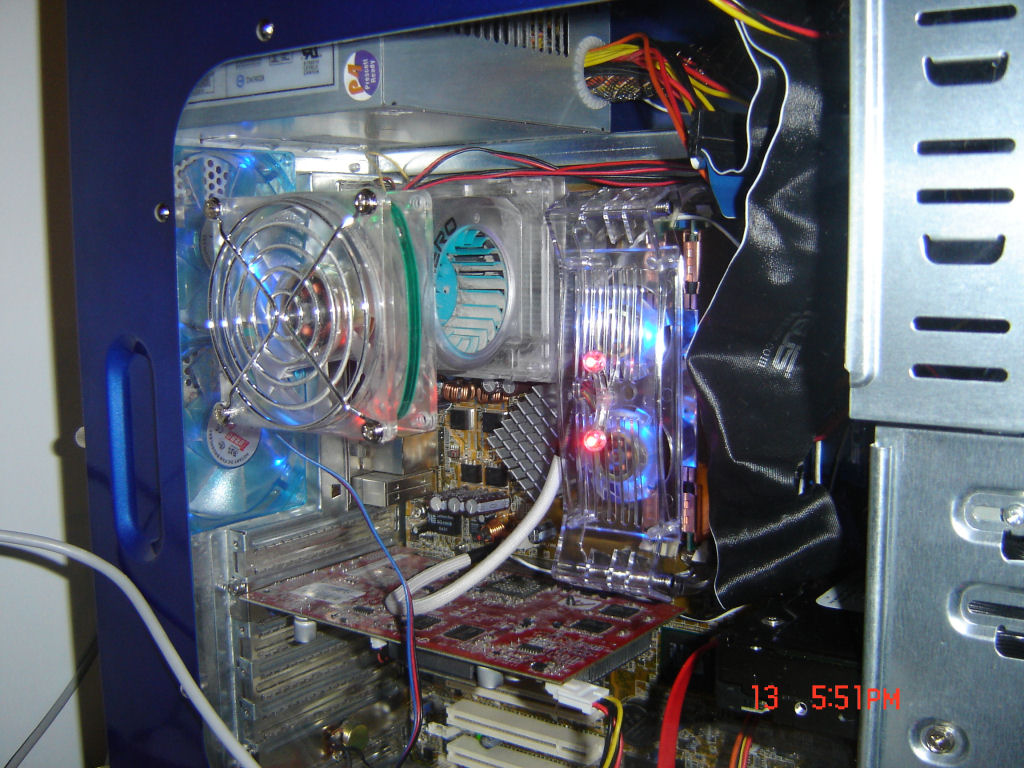

Not too much to look at, but here's my case.. Far from being done, but it's a start.



This is how I had it set up prior to the water cooling system.. Cooled great, but sounded like a small tornado!


what kind of case is that?

Link to post
Share on other sites
Sensayshun

@UberChieftain:

Looks kinda liek the soyo-cx5959 But don't quote me on that.

Link to post
Share on other sites
skapunk8301

what kind of case is that?

I have no idea what brand it is.. It was a super cheapo case I found at my local computer shop and bought for like $30.. I had spent most of the money I had at the time on the computer components, and didn't have much left for a decent case. It's worked out pretty well though, and I like the handle on top.. Helps a lot!

Link to post
Share on other sites
  • 3 weeks later...
stephen_0002

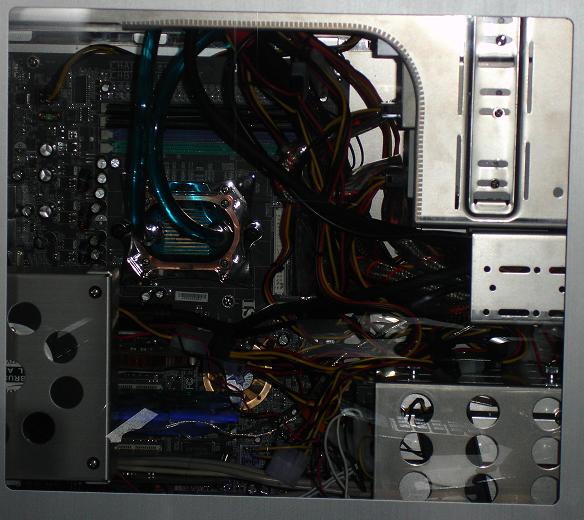

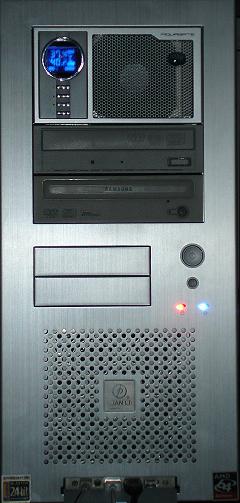

ok heres mine.. not as good as others... just average .. and sorry about the bad cam




Link to post
Share on other sites
Liandros

here is mine. all i did was add another fan to the front. not really a mod.



Link to post
Share on other sites
Beerbelly37

Hey -

I built a soda dispensing computer... Pretty crazy! I put it up on a news site that takes reader's votes and ranks articles... go check out my computer and give it a vote!!

Create an account there an vote if you have to!! I'm even asking nicely... please!

It is my first mod though... so be gentle ;)

http://digg.com/hardware/Dew_Mod:_A_Soda_Dispensing_Computer

Thanks!

Beer

P.S. If you want to go straight to the mod it's at http://www.milliondollarwebhunt.com/compmod/compmod.php

Link to post
Share on other sites
Tumble

Nice... you have any more pics of it?

Link to post
Share on other sites
FluidDruid2005

My rig: neons and many LEDs. And Space Invadery goodness.

caseinvaders_small.jpg caselight_small.jpg casedark_small.jpg

Click to biggify.

Link to post
Share on other sites
Johnus

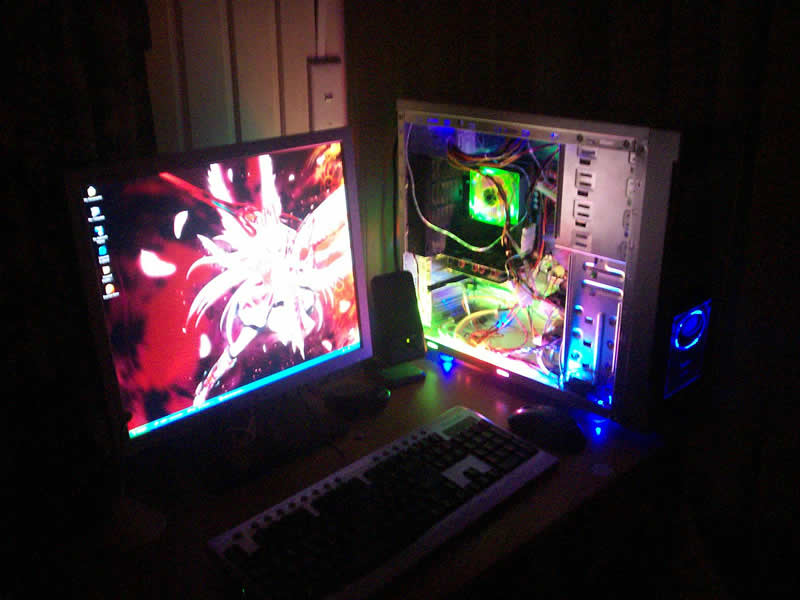

My rig: Nothing special but need to get afew mote things to complete my set up (LIKE TIDY THOES F$%&*NG cables)

I have recently just added

CoolerMaster Aquagate watercooling kit (overclocking)

Vantec Spectrum UV Fan Card ( to increase airflow and getting cool air to my VGA )

Lian Li 120mm Blower Fan ( to remove hot air from the VGA )

Cold Cathode Light Kit - UV

I will be adding more neons and i will cable sleeve the excess wires so that airflow increases and that it looks better too :cool:




Link to post
Share on other sites
  • 3 months later...
faceless105

I actually built my own cube case. I ended up tearing apart a super cheapo case for the drive racks and mobo tray, but heres some pics

heres a pic from the very begining when it was pretty much just a frame still..


I also decided to go with dual power supplies, mostly because i could. these turn on and power off together thanks to a lil rewiring, well worht it though. also note the sweet fan grills, and imagine those fans lighting up to blue


heres a good side view pic while the case is empty, you can see the blue fans with scorption fan grils and the two PSUs with their car casings.


time for the good stuff, post production pics..









Sorry for all the pics, but i dont generally get a real good chance to show this thing off. I ended up sleeving all the wires with blue uv reactive sleeving. all ide cables are rounded and uv reactive.

theres 1 blue cathode and 2 uv cathodes along with 4x 120mm fans, 5x 80mm fans (and thats not counting PSU cand CPU fans).

To control all this stuff i put in 5 switches in the front that light up clue when lit.

------------------------------------------------------------------------------------------------

If you wanna check this out some more, i have it posted on my site, http://fusionmods.net - you can rate cases there, so if you join then you can rate the case, or upload your own to have it rated.

<<sorry, selfless promo, lol>>

Link to post
Share on other sites
  • 2 weeks later...
Brodel

Just got done watercooling my Gigabyte Aurora, leak testing it at the moment hence power cable not plugged in and somewhat untidy cables. I know a lot of people dislike this case, but personally I think it's great.



Link to post
Share on other sites
  • 1 month later...
PiracyX

Just got done watercooling my Gigabyte Aurora, leak testing it at the moment hence power cable not plugged in and somewhat untidy cables. I know a lot of people dislike this case, but personally I think it's great.



Thats a very nice setup there Brodel. I am abit worried about that VGA block putting alot of weight on to the card which looks like it will snap or something. Nice kit tho :angry: lol

Link to post
Share on other sites
Brodel

Thats a very nice setup there Brodel. I am abit worried about that VGA block putting alot of weight on to the card which looks like it will snap or something. Nice kit tho :angry: lol

Thanks, yea it does look as if it puts a lot of weight on it but to be honest it's fine. I think the photo makes it looks worse than it is, the hose supports a lot of the weight and it isn't actually that heavy anyway, a lot lighter than the old Maze 4 blocks that's for sure.

Link to post
Share on other sites
PiracyX

Thanks, yea it does look as if it puts a lot of weight on it but to be honest it's fine. I think the photo makes it looks worse than it is, the hose supports a lot of the weight and it isn't actually that heavy anyway, a lot lighter than the old Maze 4 blocks that's for sure.

Hehe ah i understand. so what kind of tubing is that brodel you have there? 1/2"? and that is a Maze4 block on the GPU? looks very sweet your kit.

Link to post
Share on other sites
Brodel

Hehe ah i understand. so what kind of tubing is that brodel you have there? 1/2"? and that is a Maze4 block on the GPU? looks very sweet your kit.

Yea, that's the 1/2" tubing and Maze4, tdx on the cpu. :)

one warning on the maze 4 though, mounting ram sinks is a complete bitch. lol

Link to post
Share on other sites
PiracyX

Yea, that's the 1/2" tubing and Maze4, tdx on the cpu. :)

one warning on the maze 4 though, mounting ram sinks is a complete bitch. lol

LOL. yea i already have zalman ramsinks and by the look of things, you do aswell. That tubing looks quite fat looking at it from that pciture. Those clamps you have, what size are they? ill need about the same as you which is 10 at least to complete the loop. and what kind of coolant and your is in your system?

Link to post
Share on other sites
Dr Placebo

Must commend you all on great cases, getting Antec P180 for my first proper build soon, and will hopefully get a custom shaped window cut for some neons :D

DRP

Link to post
Share on other sites
  • 4 weeks later...
.bin

This is my pc... Nothing special, cables everywhere, who cares? I sure dont!


Link to post
Share on other sites
Beerbelly37

Hey -

I built a soda dispensing computer... Pretty crazy! I put it up on a news site that takes reader's votes and ranks articles... go check out my computer and give it a vote!!

Create an account there an vote if you have to!! I'm even asking nicely... please!

It is my first mod though... so be gentle ;)

http://digg.com/hardware/Dew_Mod:_A_Soda_Dispensing_Computer

Thanks!

Beer

P.S. If you want to go straight to the mod it's at http://www.milliondollarwebhunt.com/compmod/compmod.php

Yeah, you can find my complete "how-to" at http://www.dewmod.com

Beer

Link to post
Share on other sites
OV3RCLOCK3R

Some pics of my Rig.........

Black Widow: :D







Watercooling coming soon ;)

Link to post
Share on other sites
  • 2 weeks later...
Jordan Green

Woah that is one mean set up you have there where do you put all your cables and stuff coz mine just are there looking ugly.

Link to post
Share on other sites
