churchonsundays
i tried to clean up the cables:

SNIP

SNIP

'nother crap pic:

SNIP

i want that poster in ur last pic! haha

Link to post
Share on other sites
HideAndGoatse

Darkz, how big is your monitor? It looks pretty big, but it could just be the angle of the picture.

Link to post
Share on other sites
darkz

@Static_king: ya, its quite lovely reminder :]

@Bekabam: 22", it's in ma' sig

Link to post
Share on other sites
Master^IT

Hi a got a few of my new cables and I have tried my first attempt ever to clean the cables up... Hope it is better than before, though I am not totally done.I have posted a before and after pic. will do rest when I get my new MB:

Link to post
Share on other sites
  • 2 months later...
funkyjunky

I haven't done much to mine... I gotta go and buy more RAM for it LMAO. I supposedly have faulty RAM and it's ****ing me off.

Link to post
Share on other sites
  • 5 months later...
Malfunctional

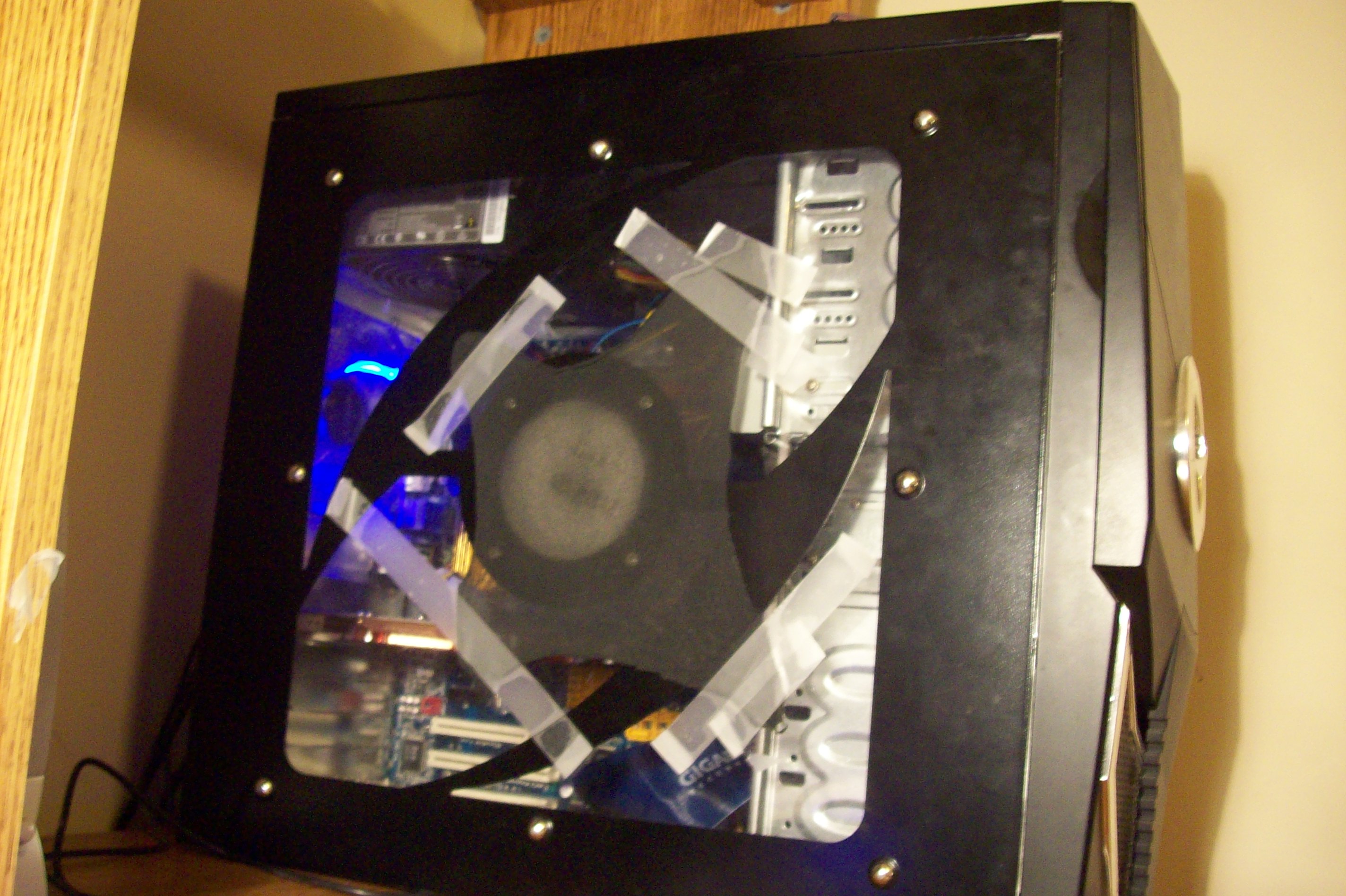

Lets see some more case mods. I'll start us off with my wonderful "mod"


^That^ is a very high tech and difficult to install panty hose fan filter held on by the amazingly durable adhesive known as tape. :D

Seriously though, lets see some new mods if anybody has them

Link to post
Share on other sites
  • 1 month later...
White Cuban

why is it strength'ed by tape, could'ent find anythin else?

Link to post
Share on other sites
  • 2 weeks later...
stephen_0002

Very Nice!!! i was thinking about painting my antec 900. just wanted to see if it was really worth doing. Thankx

I painted my Antec 900 today. It now has Red innards...

Case stripped as far as it can be without removing the rivets.


About half way through the first coat


Note the feet were masked off to keep them A) black and B) from rubbing paint onto my carpet.


Further into the coating (probably about the 2nd coat)



Note the slightly orange tinge.... eww...


To counteract the orange tinge i did a very light coat of black paint, and flecked on more black by not shaking the can prior to painting.


(it looks a bit orange in this picture, but it isn't really)


Flecking on the back I/O area.



Deep red colour has been successfully acheived.


My motherboard looks brilliant in there.


Side panel on.



Other side


Back I/O panel.


I also pugged up the large 200mm fan with Red Mesh Tulle.



And i put some more Tulle on the mesh on the side panel to make it more red.



So there is still a couple of other things I'm going to do to it. And my computer doesn't look too great when all the BLUE LED fans come on, as it neutralises the colour a hell of a lot. So i'll be replacing them soon.

What do you guys think?

Link to post
Share on other sites
  • 4 weeks later...
loonixnazi

pro tip

Hide / route cables , if you are going to build a computer, make it look nice.

examples//





Link to post
Share on other sites
SaRCaSTiCHuM0r
pro tip

Hide / route cables , if you are going to build a computer, make it look nice.

examples//





That is one sick looking machine, I wish I had the patience to do something like that!

Link to post
Share on other sites
+shift.
That is one sick looking machine, I wish I had the patience to do something like that!

It's actually easier to accomplish than you think, might need a bit of manual dexterity though. :)

Link to post
Share on other sites
Malfunctional

I'm jealous of that clean wiring, my cheap case doesn't give me enough space behind the mobo.

Link to post
Share on other sites
  • 2 months later...
Lyric

Antec 900 v2...just got it from Fry's yesterday, they didn't even have them out of the shelfs yet. I traded in my Antec 900 v1 for it.

It has better wire management, dust filters for the fans, and fan controllers built into the case...worth the $50 difference if you ask me. I took my Antec 900 v1 back with the receipt and only paid the difference. :D

Pictures:





Link to post
Share on other sites
+shift.

A 9800GTX+ fits inside a P180 without having to remove the middle hard drive cage?

I always thought it needed to be removed.

Link to post
Share on other sites
Tel

^nope, photographic evidence available above. obviously there is no drives in the middle cage but if it is empty then there is loads of room for it.

Link to post
Share on other sites
  • 1 month later...
churchonsundays

man that wiring is awesome..i need to to do mine :(

did u cut wholes into the case?

Link to post
Share on other sites
Lyric
Antec 900 v2...just got it from Fry's yesterday, they didn't even have them out of the shelfs yet. I traded in my Antec 900 v1 for it.

It has better wire management, dust filters for the fans, and fan controllers built into the case...worth the $50 difference if you ask me. I took my Antec 900 v1 back with the receipt and only paid the difference. :D

Pictures:


Cleaned up my photobucket of old photos (hence the few not showing up above in the previous post), and uploaded a new one of my case now:


Link to post
Share on other sites
+shift.

Cabling wasn't as great as when I first built it during the summer, but still pretty decent.


Link to post
Share on other sites
  • 4 months later...
houlty

Not much in modding terms, but a little none the less.

mods include top 120mm exhaust (increased from 80mm), cable management hole next to psu (not shown) and access hole behind cpu backplate (not shown). amazing what a couple of hours with a dremel can achieve.





Link to post
Share on other sites
  • 3 months later...
watchthisspace

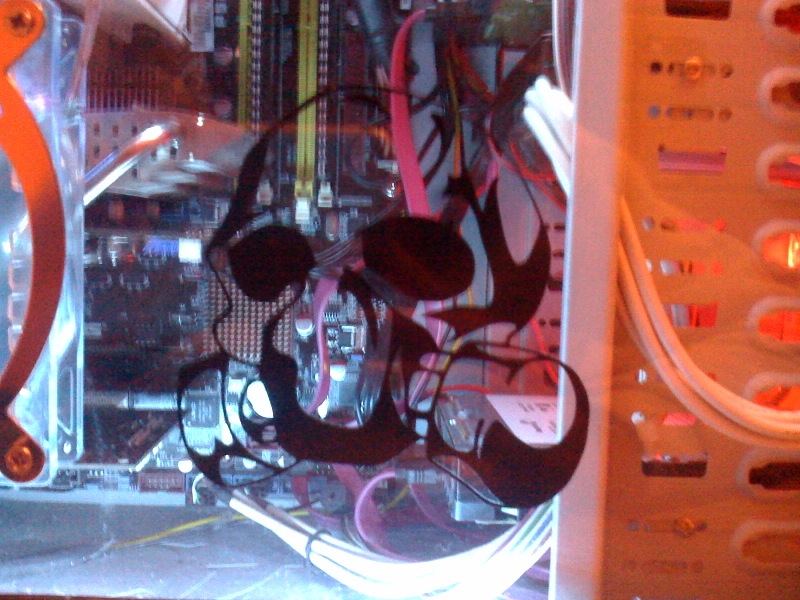

Just put this sticker on my window yesterday:


Link to post
Share on other sites
  • 5 months later...
arthur38

hey ...... i wanted to modify the hardware of my motorolla SB5101 cable modem ........... i am totally new to this thing so any guidence would be much appreciated ......... even if not pls do suggest me a right place to go to ....... if u can ........... THANKS IN ADVANCE THOUGH ....... !!!

Link to post
Share on other sites
  • 1 year later...
mrk

My new 650D, replaced the Lian-Li PC7Fwb




The USB3 port cables were long enough to root through the rear rivets nicely.




Quite happy with the upgrade, just got to replace the 200mm intake as the stock one is too noisy even on low. Tomorrow that will be sorted :)

Link to post
Share on other sites
